FABISENSE 9BW 室内空气质量监测仪,支持 CO₂、PM2.5、PM10、甲醛、TVOC 检测,具备温湿度监测功能,可选配 WiFi 及涂鸦 (Tuya) App。
FABISENSE 9BW 室内空气质量监测仪,支持 CO₂、PM2.5、PM10、甲醛、TVOC 检测,具备温湿度监测功能,可选配 WiFi 及涂鸦 (Tuya) App。
SKU:
无法加载取货可用性信息
产品描述
深入了解室内空气质量

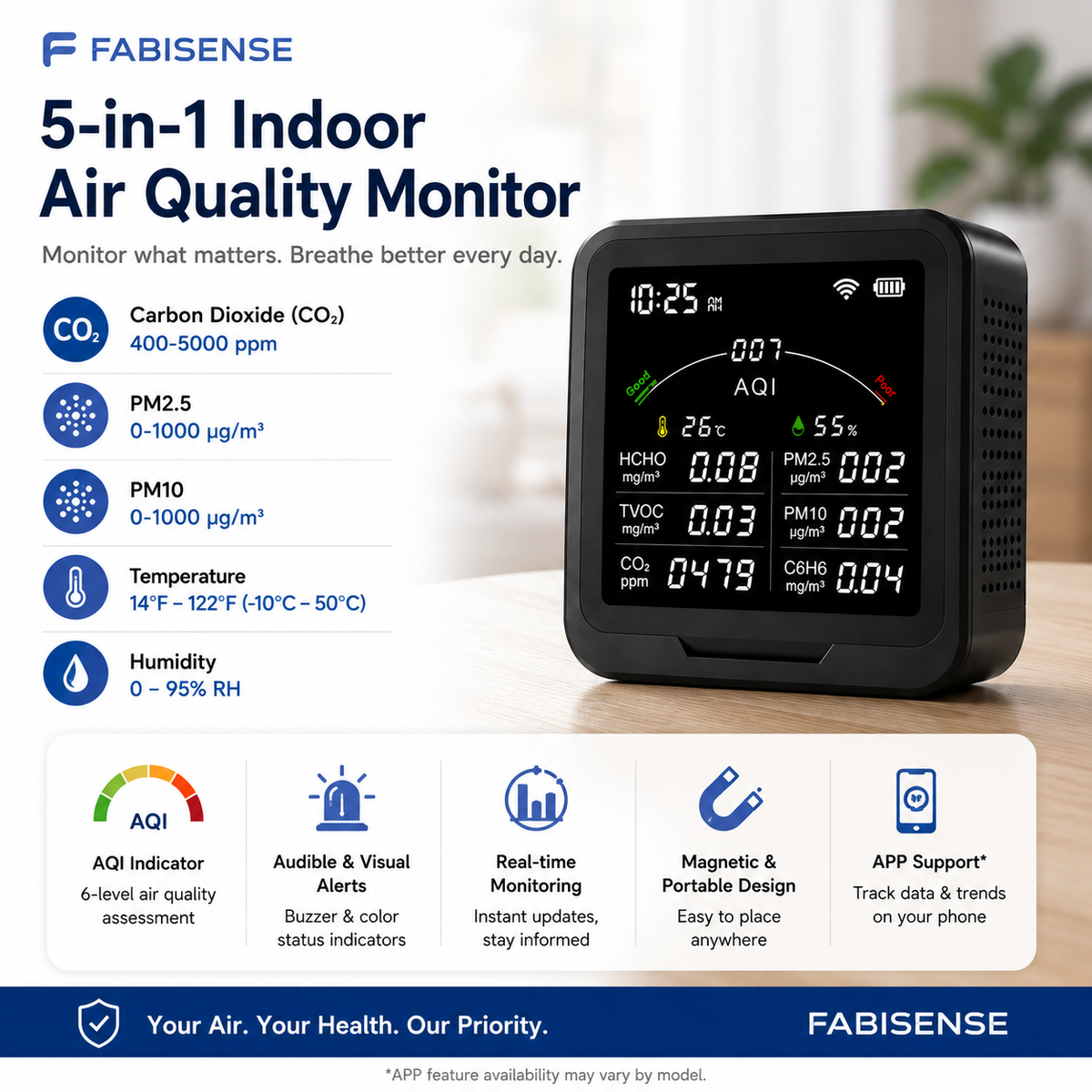

FABISENSE PTH-9B / PTH-9BW 室内空气质量监测仪将多项空气质量读数汇集在一个清晰的显示屏上。
可监测 二氧化碳 (CO₂)、PM2.5、PM10、甲醛 (HCHO)、总挥发性有机化合物 (TVOC)、苯 (C6H6)、温度和湿度,内置的空气质量指数 (AQI) 指示灯让您快速了解室内空气状况的变化。
选择 PTH-9B 进行便捷的本地监测,或升级至 PTH-9BW 以获得 2.4GHz Wi-Fi 连接和涂鸦智能 (Tuya Smart) App 访问功能。
非常适合卧室、办公室、生活空间、工作区域以及其他需要关注空气质量的室内环境。



核心功能

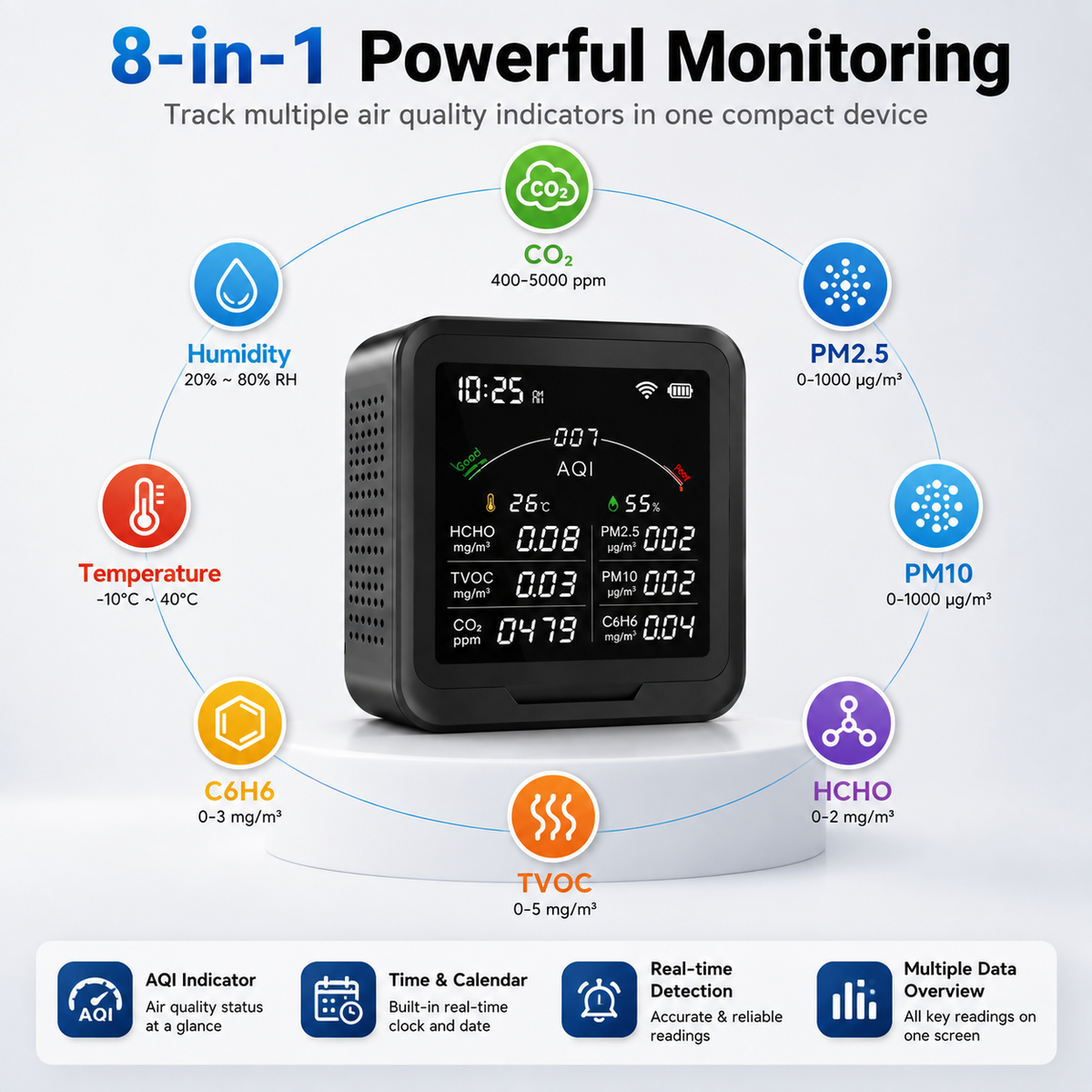

八合一室内空气监测
通过一台紧凑的设备监测多个室内环境参数:
CO₂ • PM2.5 • PM10 • HCHO • TVOC • C6H6 • 温度 • 湿度
无需在多个监测仪之间来回切换。

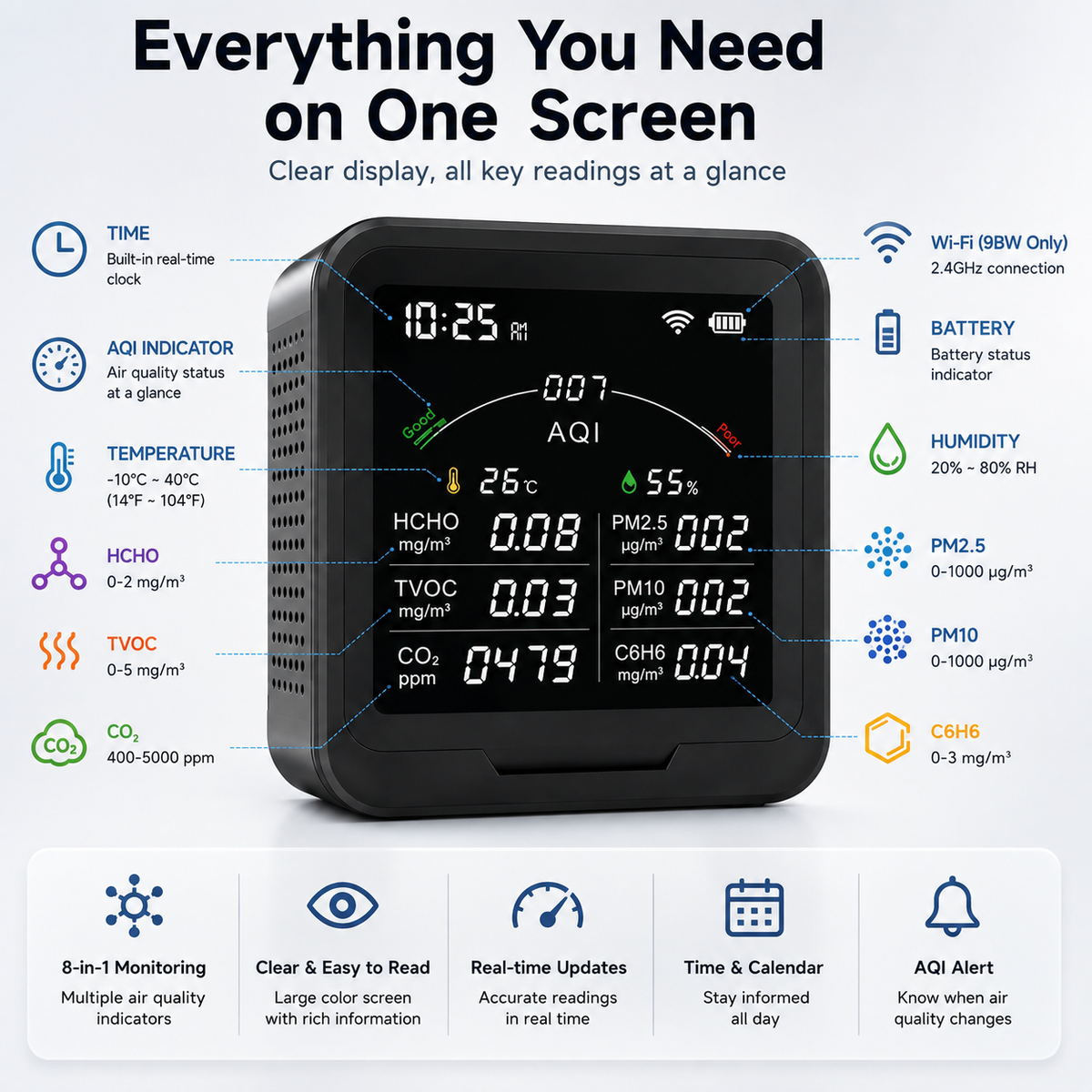

清晰的一体化显示屏
大尺寸彩色屏幕将多个读数整齐地排列在一个易于查看的界面中。
可快速查看:
- 二氧化碳浓度
- PM2.5 和 PM10
- 甲醛 (HCHO)
- 总挥发性有机化合物 (TVOC)
- 苯 (C6H6)
- 温度
- 湿度
- 空气质量指数 (AQI)
- 时间和日历
一眼即可全面掌握您的室内环境状况。

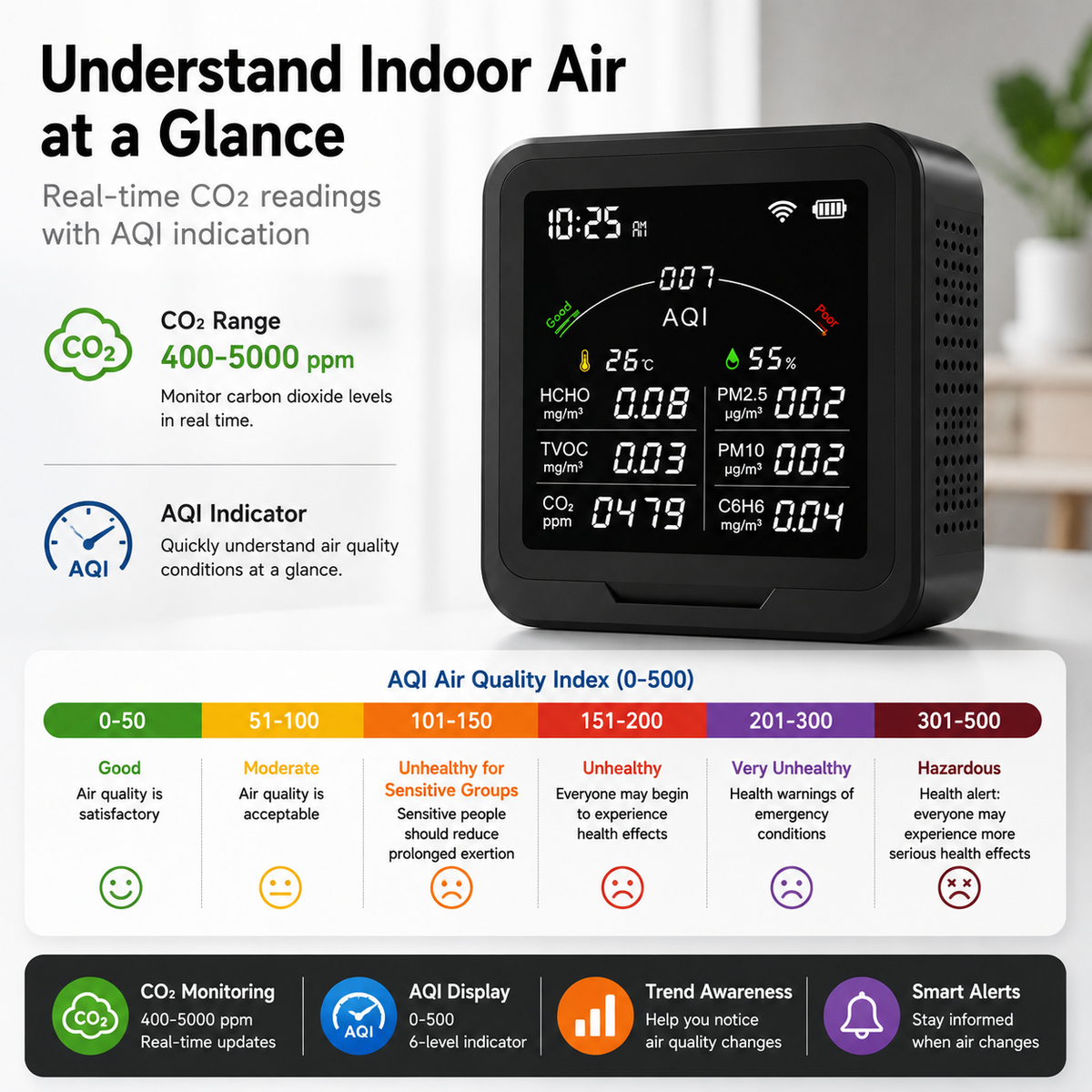

实时二氧化碳监测
监测室内二氧化碳水平,范围:
400–5000 ppm
实时读数让您更容易察觉二氧化碳水平何时开始升高,特别是在封闭或有人活动的房间内。
适用于:
卧室 • 办公室 • 会议室 • 教室 • 客厅

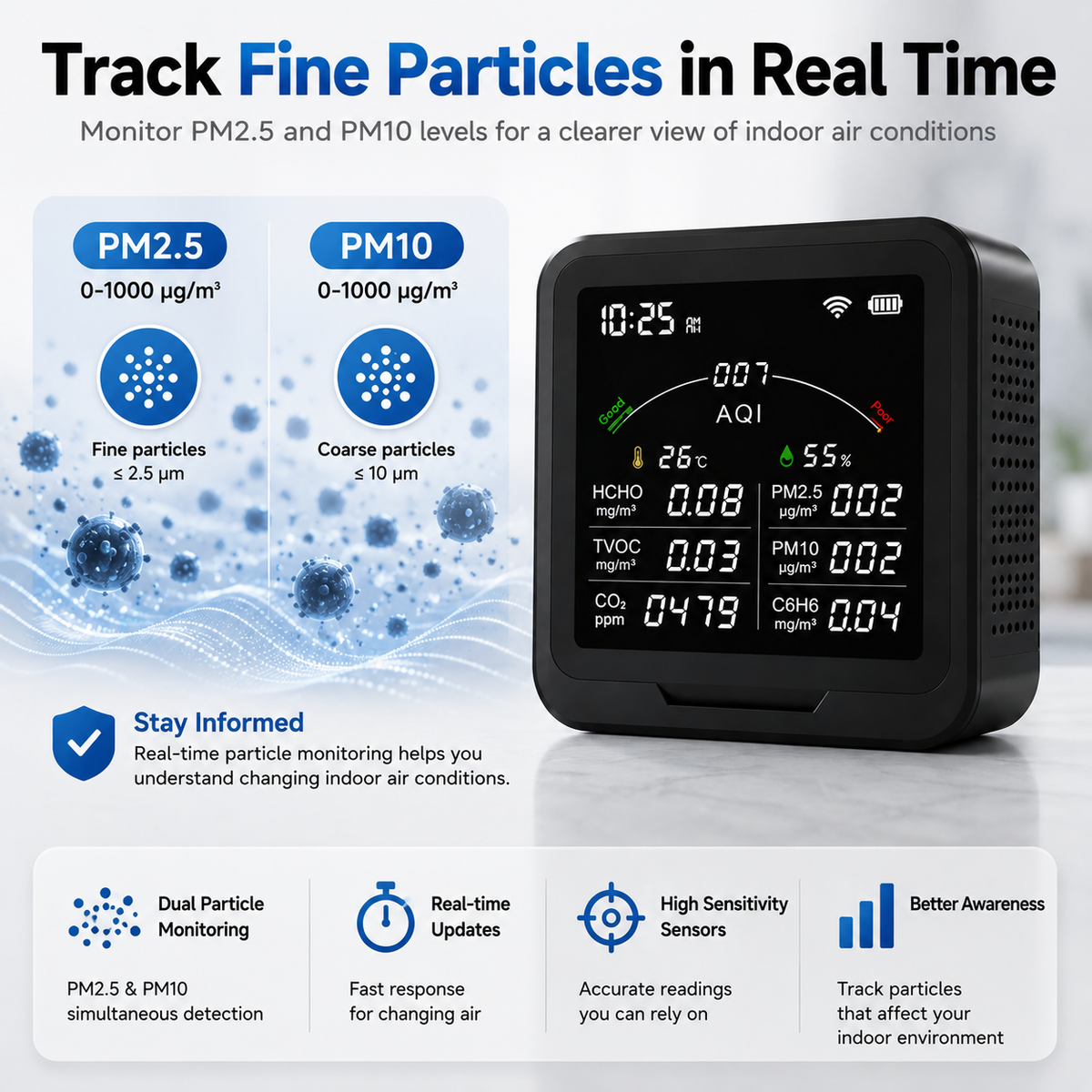

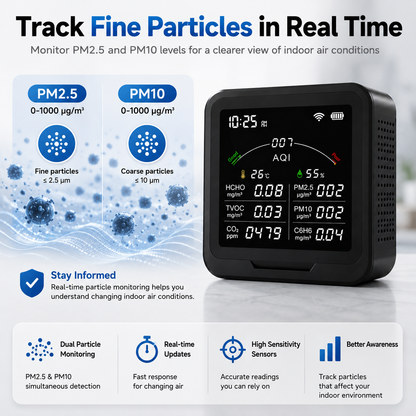

PM2.5 和 PM10 颗粒物监测
追踪两项重要的颗粒物指标:
PM2.5: 0–1000 μg/m³
PM10: 0–1000 μg/m³
随时监测由日常室内活动及周围环境状况引起的颗粒物水平变化。

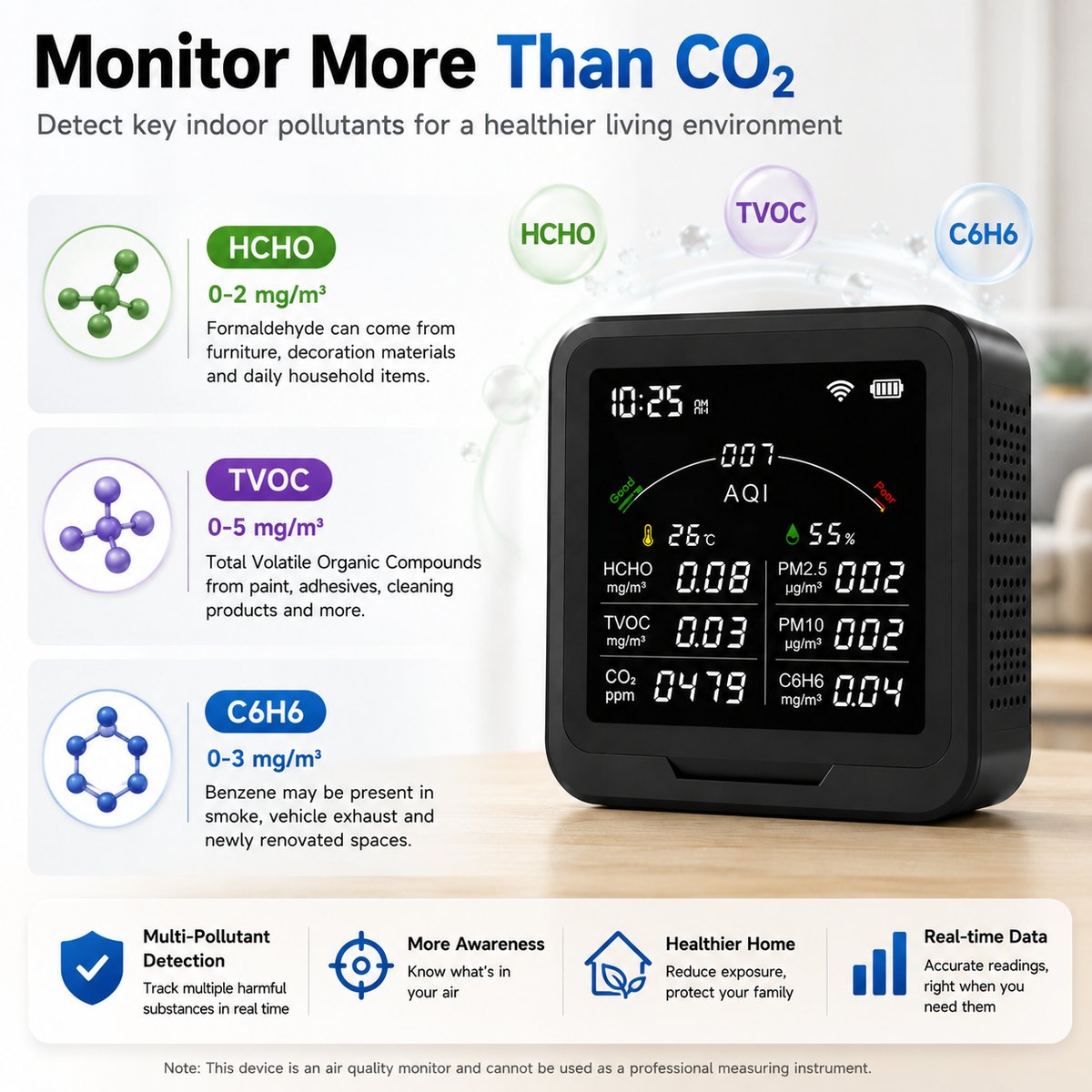

监测多种室内污染物
除了二氧化碳和颗粒物,PTH-9B 系列还监测:
HCHO(甲醛): 0–2 mg/m³
TVOC(总挥发性有机化合物): 0–5 mg/m³
C6H6(苯): 0–3 mg/m³
这使其非常适合需要全面了解室内空气状况,而不满足于仅监测单一参数的用户。

温度与湿度一目了然
内置的温湿度监测功能可帮助您在了解空气质量的同时,掌握整体室内舒适度。
温度: -10°C 至 40°C
湿度: 20%–80% RH
空气质量和舒适度信息会一同显示在同一屏幕上。

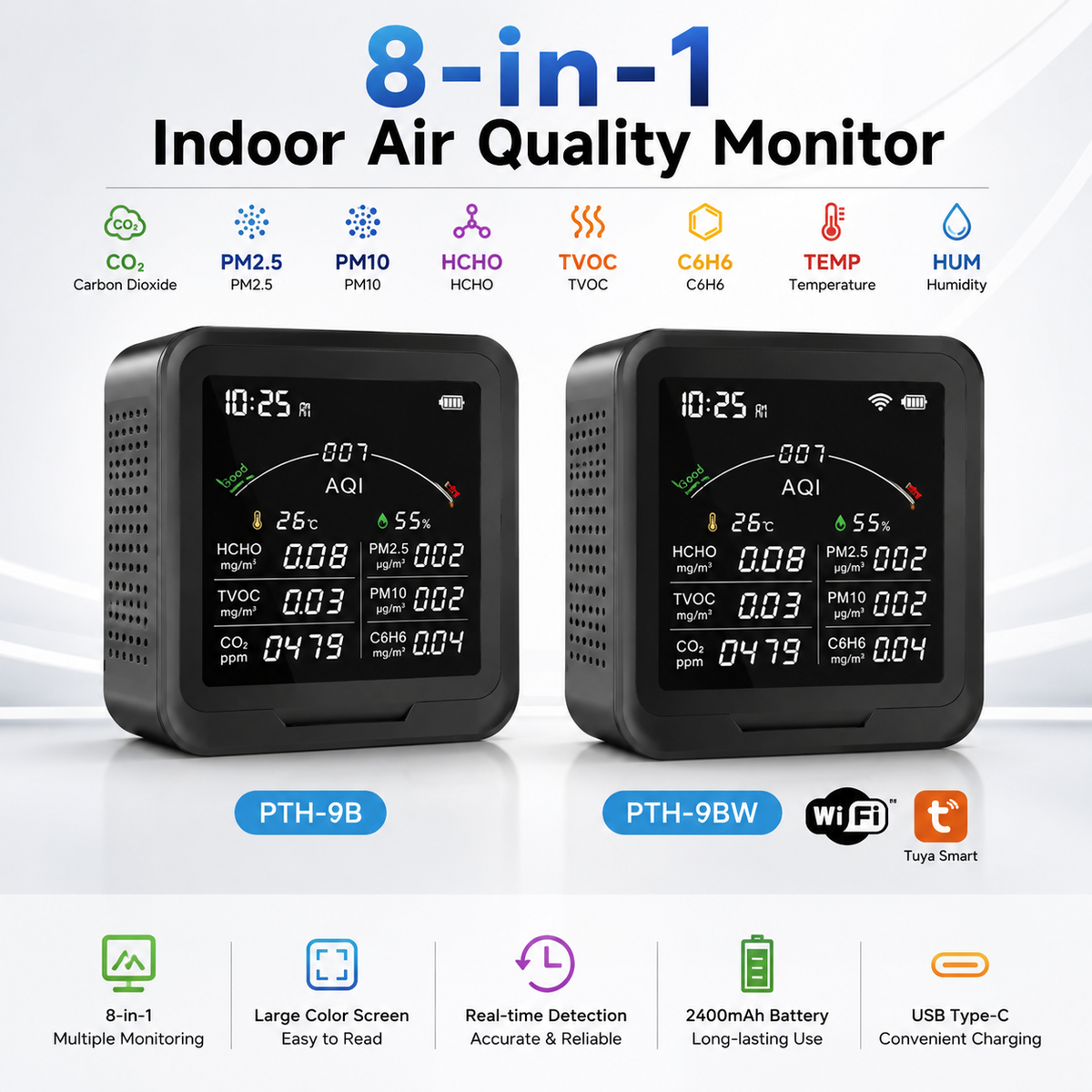

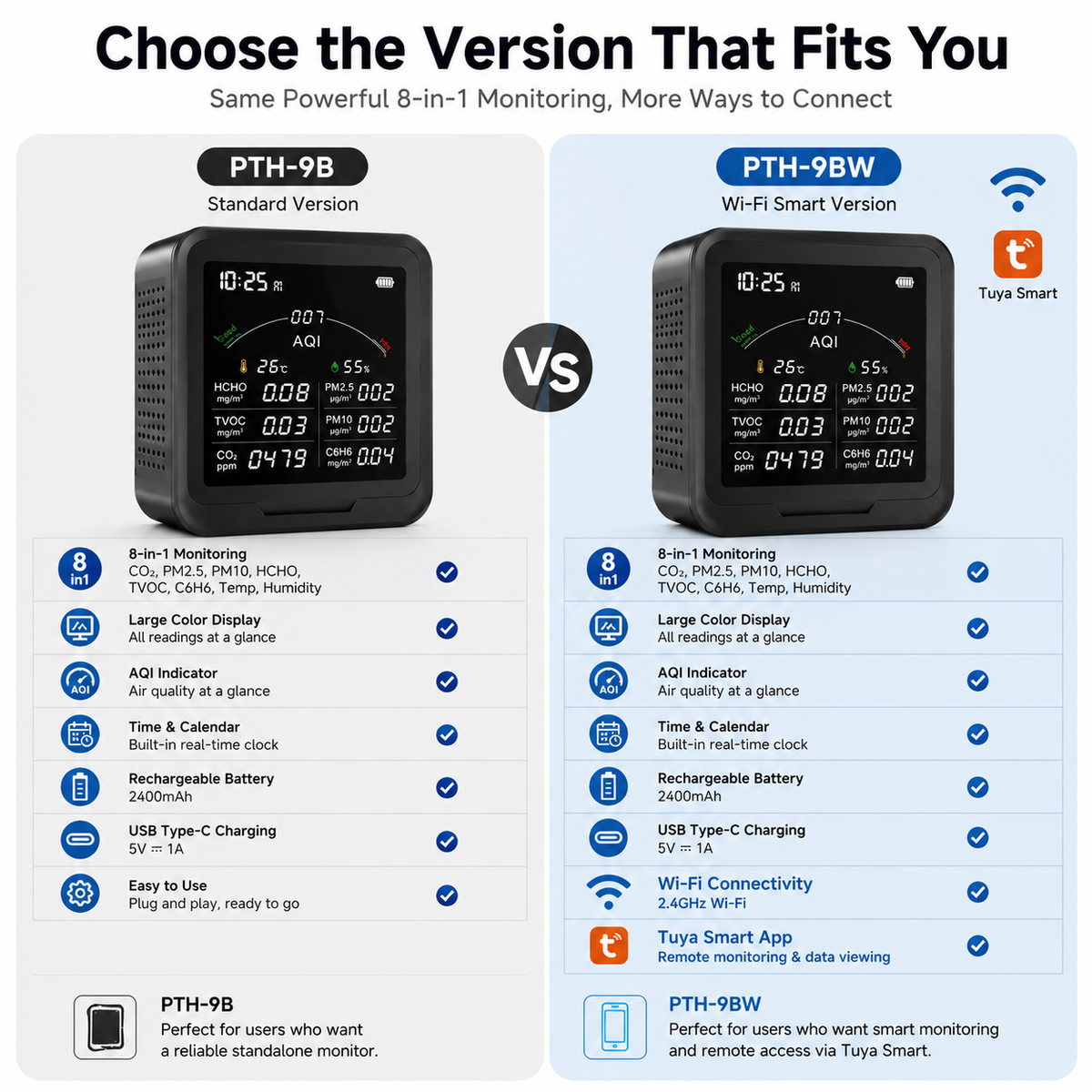

PTH-9B 与 PTH-9BW 对比
| 功能 | PTH-9B | PTH-9BW |
|---|---|---|
| CO₂ | ✓ | ✓ |
| PM2.5 | ✓ | ✓ |
| PM10 | ✓ | ✓ |
| HCHO | ✓ | ✓ |
| TVOC | ✓ | ✓ |
| C6H6 | ✓ | ✓ |
| 温度 | ✓ | ✓ |
| 湿度 | ✓ | ✓ |
| AQI | ✓ | ✓ |
| Wi-Fi | — | ✓ |
| 涂鸦智能 APP | — | ✓ |
| Wi-Fi 频率 | — | 2.4GHz |
PTH-9B
最适合需要简单独立空气质量监测器的用户。
PTH-9BW
最适合除了本地监测外,还希望拥有 Wi-Fi 连接和涂鸦智能 App 访问功能的用户。

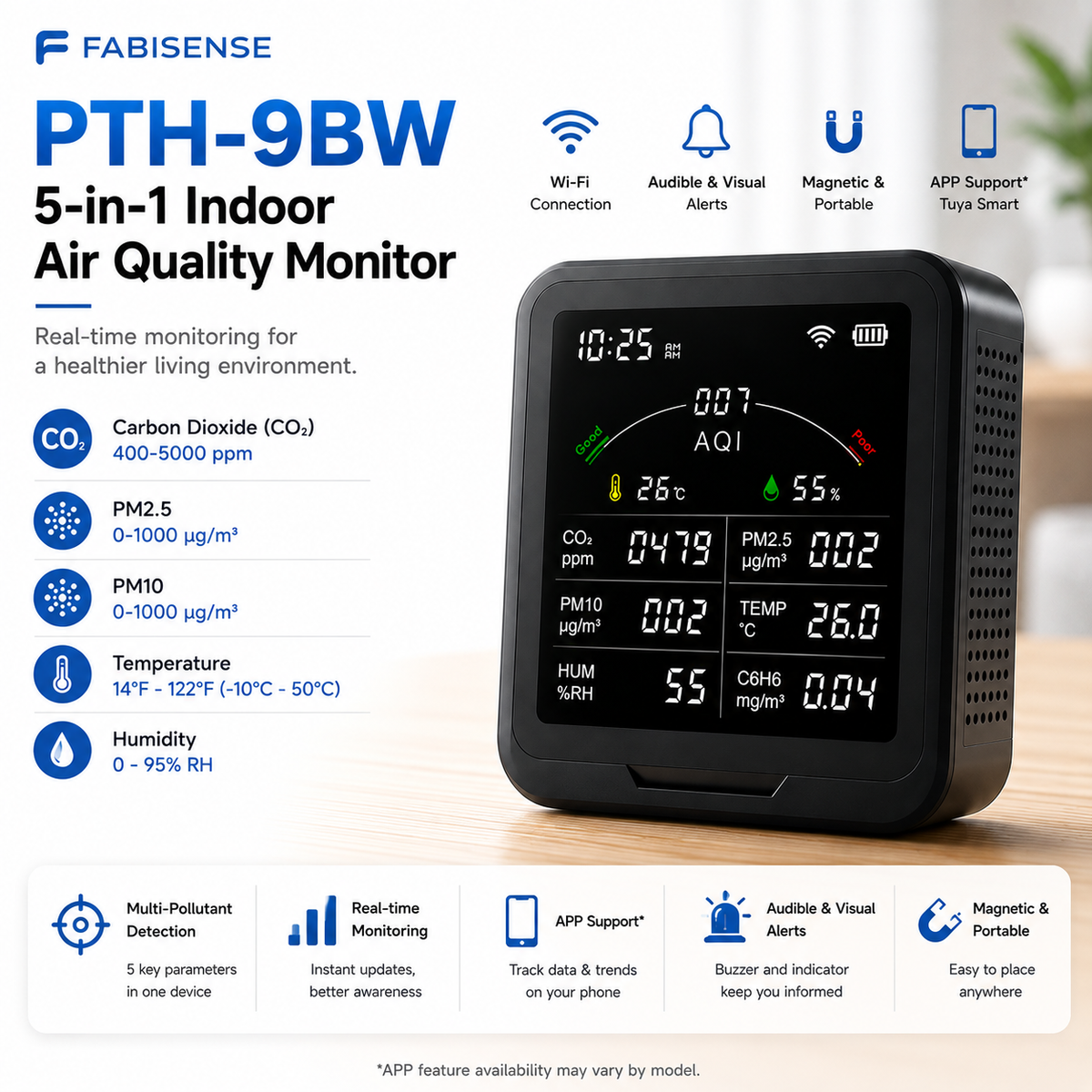

PTH-9BW 智能监测
连接涂鸦智能
PTH-9BW 为您的室内空气监测方案增加了无线连接功能。
通过 2.4GHz Wi-Fi 网络连接,并使用 涂鸦智能 (Tuya Smart) App 实现兼容的智能监测功能。
请注意:
PTH-9B 不支持 Wi-Fi 或 App 连接功能。

可充电且易于放置
内置 2400mAh 锂电池,让您在将监测仪放置于家中或工作场所时拥有更大的灵活性。
充电方式便捷:
USB Type-C 接口
机身紧凑,易于放置在办公桌、床头柜、书架或工作台面上。

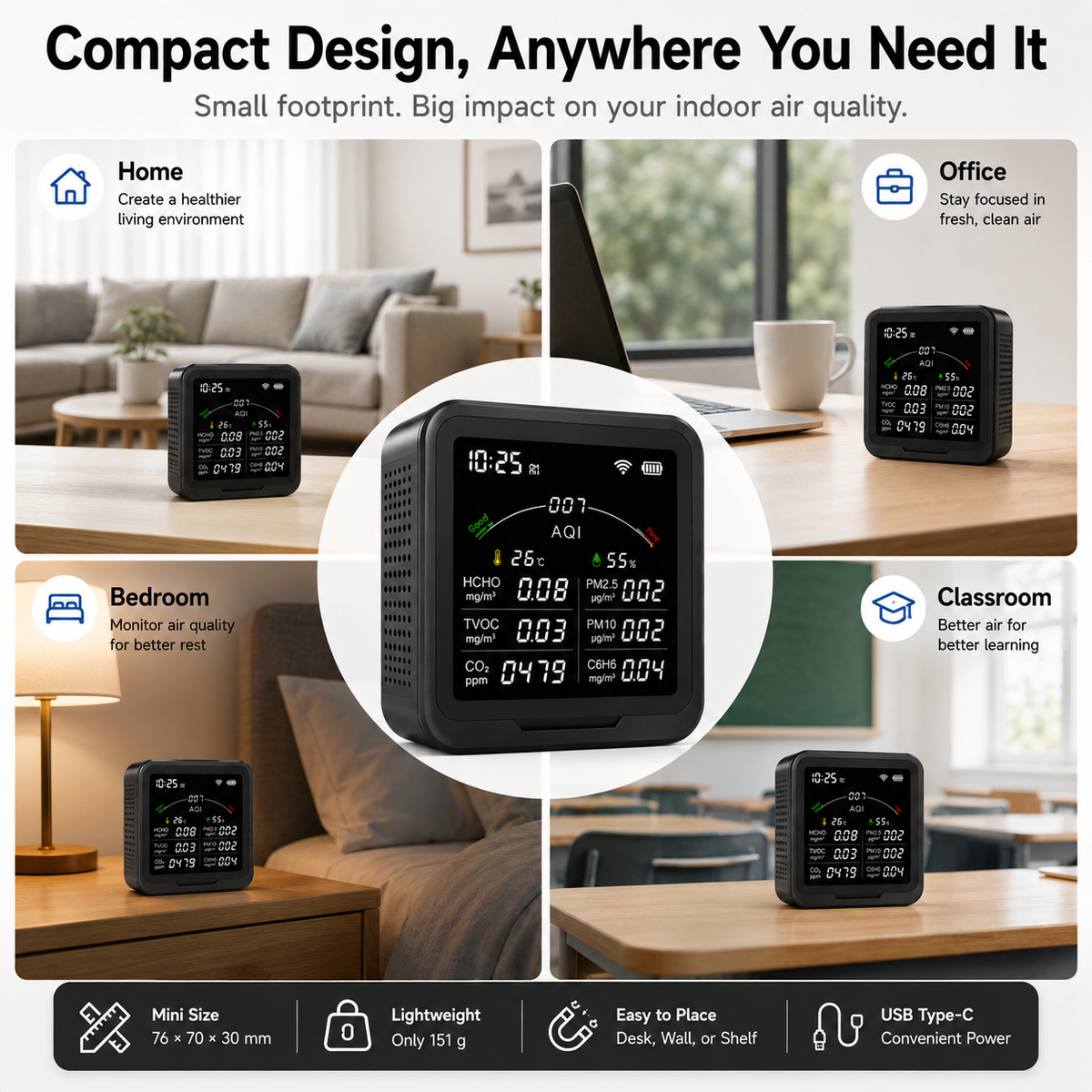

专为日常室内空间设计
在任何您想更清晰了解室内环境的地方使用它:
卧室
监测夜间房间状况。
家庭办公室
工作时留意空气质量。
办公室与会议室
适用于有人活动的室内工作场所。
客厅
监测日常居家空气状况。
温室
通过一台设备查看多个环境读数。

技术规格
| 规格 | PTH-9B / PTH-9BW |
|---|---|
| CO₂ 范围 | 400–5000 ppm |
| CO₂ 分辨率 | 1 ppm |
| HCHO 范围 | 0–2 mg/m³ |
| HCHO 分辨率 | 0.01 mg/m³ |
| PM2.5 范围 | 0–1000 μg/m³ |
| PM2.5 分辨率 | 1 μg/m³ |
| PM10 范围 | 0–1000 μg/m³ |
| PM10 分辨率 | 1 μg/m³ |
| C6H6 范围 | 0–3 mg/m³ |
| C6H6 分辨率 | 0.01 mg/m³ |
| TVOC 范围 | 0–5 mg/m³ |
| TVOC 分辨率 | 0.01 mg/m³ |
| 温度范围 | -10°C–40°C |
| 湿度范围 | 20%–80% RH |
| AQI | 0–500 |
| 电池 | 2400mAh 锂电池 |
| 充电 | USB Type-C, 5V ⎓ 1A |
| 产品尺寸 | 98 × 90 × 40 毫米 |
| Wi-Fi | 仅 PTH-9BW, 2.4GHz |
| APP | 涂鸦智能 (Tuya Smart), 仅 PTH-9BW |

八合一室内空气质量监测仪
CO₂ • PM2.5 • PM10 • HCHO • TVOC • C6H6 • 温度 • 湿度

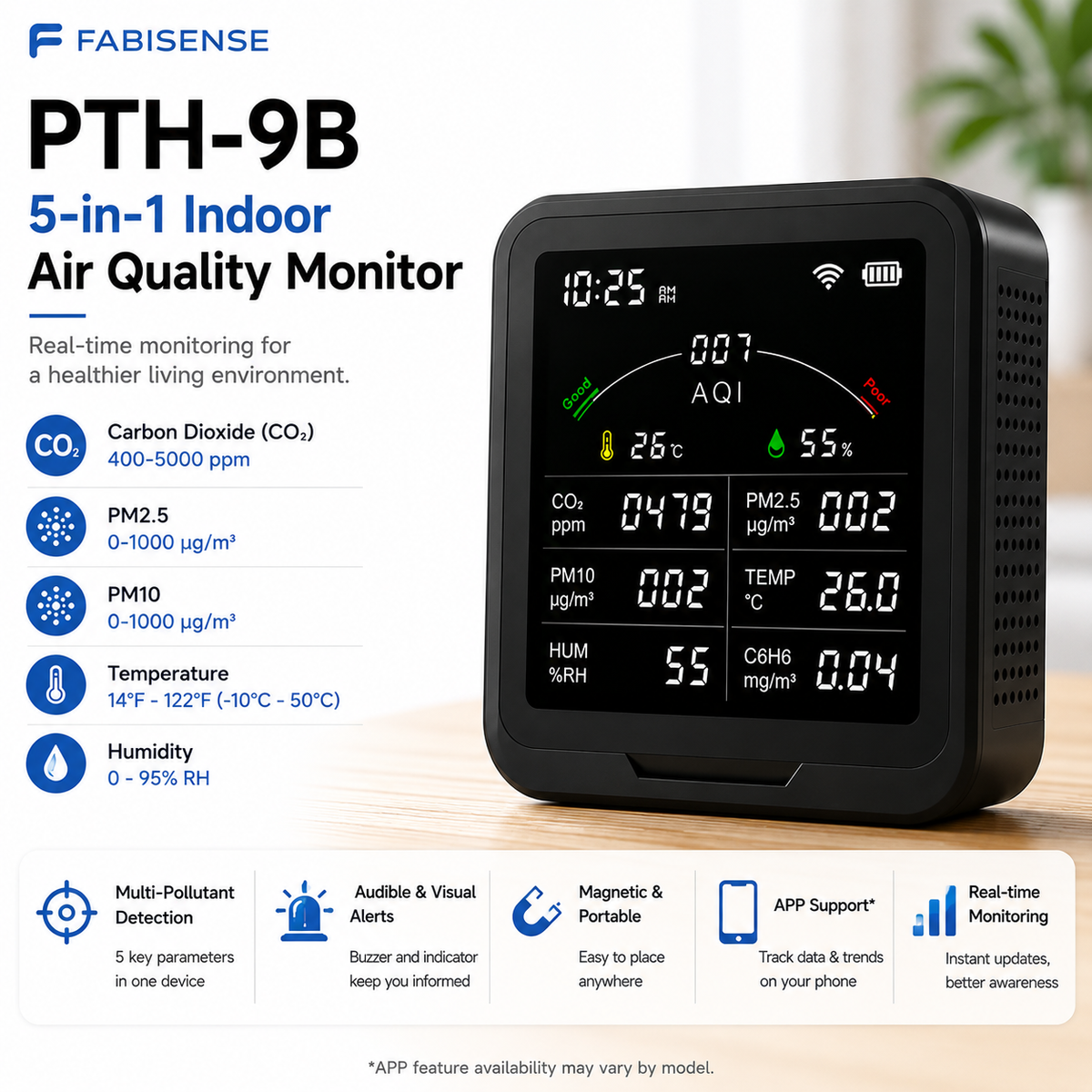

PTH-9B — 标准版
PTH-9BW — Wi-Fi + 涂鸦智能版
