Electrochemical CO Sensors vs NDIR CO₂ Sensors: What’s the Difference? | FABISENSE
Electrochemical CO Sensors vs NDIR CO₂ Sensors: What’s the Difference?
Carbon monoxide and carbon dioxide differ by only one oxygen atom in their chemical formulas:
- Carbon monoxide: CO
- Carbon dioxide: CO₂
However, the two gases are very different in how they are produced, how they affect indoor environments and how they should be measured.
That is why a professional CO and CO₂ monitor usually does not rely on one general-purpose sensor. Instead, it may use an electrochemical sensor for carbon monoxide and a separate non-dispersive infrared sensor for carbon dioxide.
Understanding these technologies can help users choose a more reliable monitor and interpret its readings correctly.
CO and CO₂ Are Not the Same Gas
Carbon monoxide
Carbon monoxide is produced when fuels do not burn completely. Possible sources include furnaces, boilers, generators, fireplaces, gas appliances, charcoal grills and vehicle exhaust.
CO is colorless and odorless. Exposure can cause headache, dizziness, weakness, nausea, confusion, loss of consciousness and, at high exposure levels, death. People who are asleep may be unable to recognize symptoms before becoming seriously affected.
Because CO can become dangerous at relatively low concentrations, its measurement requires a sensor capable of detecting small changes in parts per million.
Carbon dioxide
Carbon dioxide is naturally present in outdoor air and is also produced when people breathe. In occupied bedrooms, classrooms, offices and meeting rooms, CO₂ often rises when ventilation is insufficient for the number of people present.
Indoor CO₂ measurements can provide useful information about ventilation, but they must be interpreted carefully. A CO₂ reading does not measure every indoor pollutant and cannot, by itself, determine whether the overall air quality is healthy.
This leads to an important distinction:
A CO detector is designed to warn about toxic carbon monoxide. A CO₂ monitor is commonly used to understand ventilation and indoor occupancy conditions.
One should never be treated as a substitute for the other.

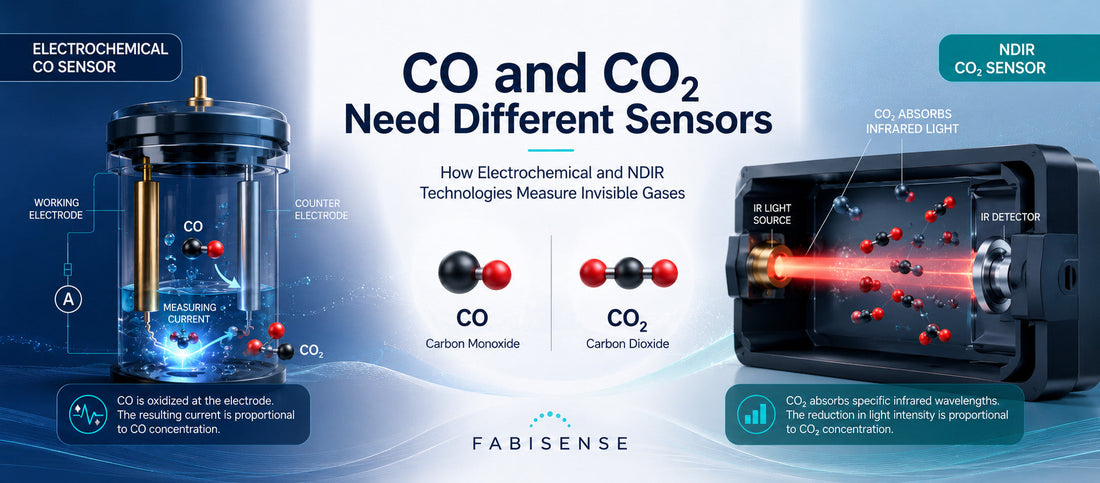

How an Electrochemical CO Sensor Works
An electrochemical carbon monoxide sensor contains a small electrochemical cell with electrodes and an electrolyte.
When CO enters the sensor through a diffusion barrier, it reaches the working electrode and participates in a controlled chemical reaction. This reaction produces an electrical current.
The amount of current generated is related to the concentration of carbon monoxide reaching the electrode. The device’s electronics then convert that signal into a CO reading, usually displayed in ppm — parts per million.
In simplified form:
CO enters the sensor → electrochemical reaction occurs → electrical current is generated → the device calculates the CO concentration.
Why electrochemical sensing is suitable for CO
Electrochemical technology is widely used for toxic-gas measurement because it can offer:
- High sensitivity at low ppm concentrations
- Relatively low power consumption
- Compact sensor size
- Good selectivity when properly designed
- A signal that changes with gas concentration
- Suitability for portable and battery-powered monitors
These characteristics make electrochemical sensing practical for home CO monitors, portable safety devices, industrial instruments and multi-gas detectors.
Does an electrochemical sensor last forever?
No.
An electrochemical sensor contains active chemical materials. Its performance can gradually change because of:
- Sensor age
- Long-term environmental exposure
- Temperature and humidity
- Exposure to very high gas concentrations
- Contamination
- Cross-sensitivity to other gases
- Storage and operating conditions
For this reason, manufacturers specify a sensor service life, operating range and calibration requirements.
A quality device should also provide clear information about:
- Sensor lifespan
- Alarm behavior
- Calibration options
- End-of-life indication
- Recommended testing procedures
How an NDIR CO₂ Sensor Works
NDIR means non-dispersive infrared.
Unlike an electrochemical sensor, an NDIR sensor measures CO₂ optically. It usually contains:
- An infrared light source
- A measurement chamber
- An optical filter
- An infrared detector
- Signal-processing electronics
Carbon dioxide absorbs infrared energy at specific wavelengths. A commonly used CO₂ absorption band is approximately 4.26 micrometers.
The sensor directs infrared light through a chamber containing the sampled air. CO₂ molecules absorb part of that light. The detector measures how much infrared energy reaches the other side, and the electronics use the amount of absorption to calculate the CO₂ concentration.
In simplified form:
Infrared light passes through the air → CO₂ absorbs part of the light → the detector measures the remaining light → the device calculates CO₂ concentration.
Why NDIR is suitable for CO₂
Infrared CO₂ sensors are commonly selected because they can provide:
- Good selectivity for CO₂
- Long-term measurement stability
- A relatively long operating life
- No electrolyte consumption during normal measurement
- Continuous real-time monitoring
- Suitability for homes, schools, offices and HVAC systems
Because the sampled gas does not need to be consumed in a chemical reaction, NDIR technology can provide a longer service life than many chemical sensing methods.
Factors that can affect NDIR readings
Although NDIR is a reliable technology, its performance still depends on sensor design and operating conditions.
Possible influences include:
- Temperature changes
- Atmospheric pressure
- Condensation
- Dust or contamination in the optical chamber
- Blocked air openings
- Insufficient warm-up time
- Sensor drift
- Incorrect automatic calibration assumptions
More advanced NDIR systems may use a reference wavelength, temperature compensation, pressure compensation or automatic baseline correction to improve long-term stability.
Not every infrared sensor offers the same accuracy, response time or calibration method, so users should review the complete product specifications rather than relying only on the word “NDIR.”
| Feature | Electrochemical CO Sensor | NDIR CO₂ Sensor |
|---|---|---|
| Target gas | Carbon monoxide | Carbon dioxide |
| Common unit | ppm | ppm |
| Measurement principle | Chemical reaction creates electrical current | CO₂ absorbs infrared light |
| Typical purpose | Toxic-gas safety monitoring | Ventilation and occupancy monitoring |
| Power consumption | Usually low | Generally higher than electrochemical sensing |
| Sensor life | Limited by electrochemical materials | Commonly longer because measurement is optical |
| Important maintenance factors | Sensor age, exposure and calibration | Optical cleanliness, compensation and calibration |
| Can it detect the other gas? | No | No |
Neither technology is universally “better.”
Each one is designed around the physical and chemical properties of its target gas.
Why One Sensor Cannot Reliably Measure Both
CO and CO₂ are separate gases with different risks and measurement requirements.
An electrochemical CO sensor is designed to create a measurable chemical response when carbon monoxide reaches its electrode.
An NDIR CO₂ sensor is designed to detect the infrared absorption signature of carbon dioxide.
A sensor optimized for CO will not automatically provide an accurate CO₂ reading. Likewise, an NDIR CO₂ sensor does not function as a household carbon monoxide alarm.
This is why a genuine dual-gas monitor should contain:
- A dedicated CO sensing element
- A dedicated CO₂ sensing element
- Separate signal processing for each gas
- Clearly identified readings and alarm logic
Consumers should be cautious about products that claim to measure many unrelated gases without clearly identifying the sensor technology used.
What Does a CO₂ Reading Tell You?
In occupied indoor spaces, rising CO₂ can suggest that exhaled air is accumulating faster than it is being replaced with outdoor air.
A CO₂ monitor can therefore help users answer questions such as:
- Does the bedroom need more ventilation?
- Is a meeting room becoming overcrowded?
- Does opening a window reduce the reading?
- Is the HVAC system providing enough outdoor air?
- Does CO₂ increase overnight while people are sleeping?
However, CO₂ should not be treated as a complete indoor-air-quality score.
A low CO₂ reading does not prove that a room is free from:
- Carbon monoxide
- PM2.5
- Formaldehyde
- Radon
- Smoke
- Combustible gases
- Other indoor pollutants
The EPA notes that low-cost monitors can provide useful information, but health risk cannot be determined from a single monitor reading alone.
What Does a CO Reading Tell You?
A CO reading represents the detected concentration of carbon monoxide in the surrounding air.
Unlike CO₂ monitoring, which is commonly associated with ventilation awareness, CO monitoring is a safety function.
If a CO alarm sounds:
- Move people and pets to fresh air.
- Follow the alarm manufacturer’s instructions.
- Contact local emergency services or the appropriate gas-safety authority.
- Do not ignore the alarm because the gas cannot be smelled.
- Do not re-enter the property until it has been declared safe.
A real-time display can help users see measured concentrations, but the audible alarm remains an essential safety feature.
Understanding UL Sensor Certification
Some monitors use a CO sensor component that has been evaluated or certified by UL Solutions.
It is important to distinguish between:
- A UL Recognized or certified sensor component
- A UL Listed finished detector
UL explains that a Recognized Component is evaluated for use as part of a larger product under specified conditions. This does not automatically mean the complete finished device is UL Listed.
Therefore, accurate product wording should state the actual scope of certification.
For example:
Correct when supported by documentation:
Equipped with a UL-certified electrochemical CO sensor.
This describes the sensor component.
Do not describe the whole monitor as a UL Listed CO alarm unless the finished product itself has completed the applicable UL certification and bears the relevant mark.
What to Look for in a CO and CO₂ Monitor
When comparing products, consider more than the number of functions shown on the screen.
For carbon monoxide monitoring
Look for:
- Electrochemical CO sensing
- Clear sensor and certification information
- Audible and visual alarms
- Defined alarm thresholds
- Sensor end-of-life information
- Calibration or testing instructions
- A stated detection range and accuracy
For carbon dioxide monitoring
Look for:
- Genuine NDIR infrared sensing
- Defined measurement range
- Stated accuracy and response time
- Temperature or pressure compensation
- Clear calibration instructions
- Historical trends or app data when needed
- Properly positioned air-inlet openings
For the complete device
Also consider:
- Screen readability
- Battery or power-failure behavior
- Alarm volume
- Portability
- Data history
- App connectivity
- Warranty and after-sales support
- Clear product limitations
How FABISENSE Uses Dedicated Sensor Technologies
Selected FABISENSE CO and CO₂ monitors combine two dedicated measurement technologies:
- An electrochemical sensor for carbon monoxide
- An NDIR infrared sensor for carbon dioxide
This approach allows each gas to be measured using technology designed specifically for its characteristics.
Depending on the model, additional functions may include:
- Temperature and humidity display
- Audible and visual alerts
- Rechargeable battery
- Mobile app connectivity
- Historical data
- Adjustable alarm settings
- Portable use in homes, offices, RVs and camping environments
The purpose is not simply to display more numbers. It is to provide clearer information about two different indoor-air concerns:
CO monitoring for safety and CO₂ monitoring for ventilation awareness.
Frequently Asked Questions
Is CO₂ the same as carbon monoxide?
No. CO₂ is carbon dioxide, while CO is carbon monoxide. They have different sources, risks and sensor requirements.
Can an NDIR CO₂ sensor detect carbon monoxide?
Not unless the optical system is specifically engineered and calibrated for CO. A normal household NDIR CO₂ sensor should not be considered a CO detector.
Can an electrochemical CO sensor measure CO₂?
No. It is designed to respond to carbon monoxide through an electrochemical reaction.
Is an infrared CO₂ sensor better than a semiconductor sensor?
NDIR generally offers better gas selectivity and long-term stability for true CO₂ measurement. Product accuracy still depends on optical design, calibration, compensation and overall manufacturing quality.
Does a high CO₂ reading mean there is carbon monoxide?
No. A high CO₂ reading does not automatically indicate CO. The gases must be measured independently.
Does a CO₂ monitor replace a CO alarm?
No. A CO₂ monitor cannot replace a properly designed carbon monoxide safety device.
What does “UL-certified CO sensor” mean?
It normally refers to the sensor component and its documented certification scope. It does not automatically mean the complete detector is UL Listed.
The Bottom Line
Carbon monoxide and carbon dioxide require different sensing technologies because they are different gases with different purposes.
An electrochemical sensor converts a controlled CO reaction into an electrical signal, making it suitable for sensitive toxic-gas monitoring.
An NDIR sensor measures how much infrared light is absorbed by CO₂, making it suitable for stable, continuous ventilation monitoring.
When both gases need to be measured, using a dedicated sensor for each provides a more professional and technically appropriate solution.
Different gases. Different sensors. Clearer air awareness.
