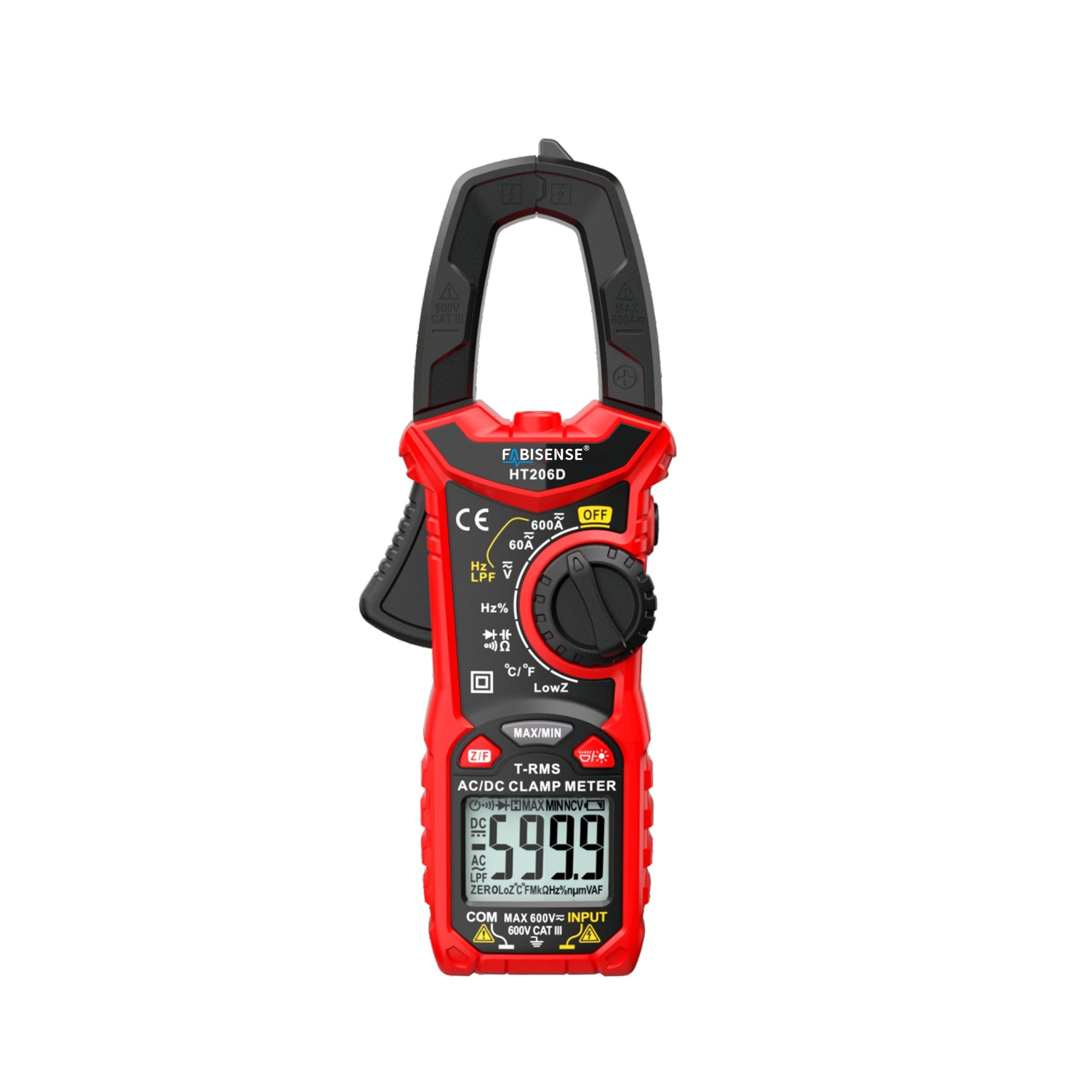

FABISENSE HT206D Professional AC/DC Digital Clamp Meter 6000 Counts True RMS Auto-Ranging Amp Volt Tester with DCA Zero, Low-Z, LPF & Temperature

FABISENSE HT206D Flagship AC/DC Current Digital Clamp Meter

The FABISENSE HT206D is the ultimate flagship model of the HT206 series, offering comprehensive both AC and DC Current measurement capability up to 600A. Tailored for automotive technicians, solar panel installers, battery backup specialists, and industrial engineers, it provides flawless heavy-duty diagnostics across any modern electrical network.

Key Features:

• Comprehensive AC & DC Current Metering: Measures both AC and DC current up to 600A directly through the clamp jaw, making it indispensable for automotive, marine, solar, and battery testing.

• DCA Zero Function: Equipped with a dedicated one-touch DCA Zero button to clear magnetic field interference before testing DC current, ensuring pinpoint accuracy.

• Master Filter Suite (LPF & Low-Z): Features built-in Low Pass Filtering for pristine VFD motor drive testing and Low-Z mode to instantly dismiss misleading ghost voltages.

• Non-Contact Safety Sensing (NCV): Integrated NCV detector tracks live voltage behind walls or switches safely with immediate audio-visual notifications.

• All-in-One Electronics Testing: Packed with professional functions including temperature tracking (-40°C to 1000°C), massive 100mF capacitance range, frequency counter, duty cycle, diode test, data hold, and dual-color backlight screen.

Specifications:

• DC Current / AC Current: 60A / 600A (True RMS Auto-Ranging)

• DCA Reset Feature: One-Touch DCA Zero Reset

• Display Resolution: 6000 Counts High-Definition Display

• Advanced Systems: LPF, Low-Z, NCV (Sound and Light Alarm)

• DC/AC Voltage Range: Up to 600V

• Capacitance / Frequency: Up to 100mF / Up to 10MHz

• Jaw Opening / Weight: 26mm x 43mm / Approx. 190g
