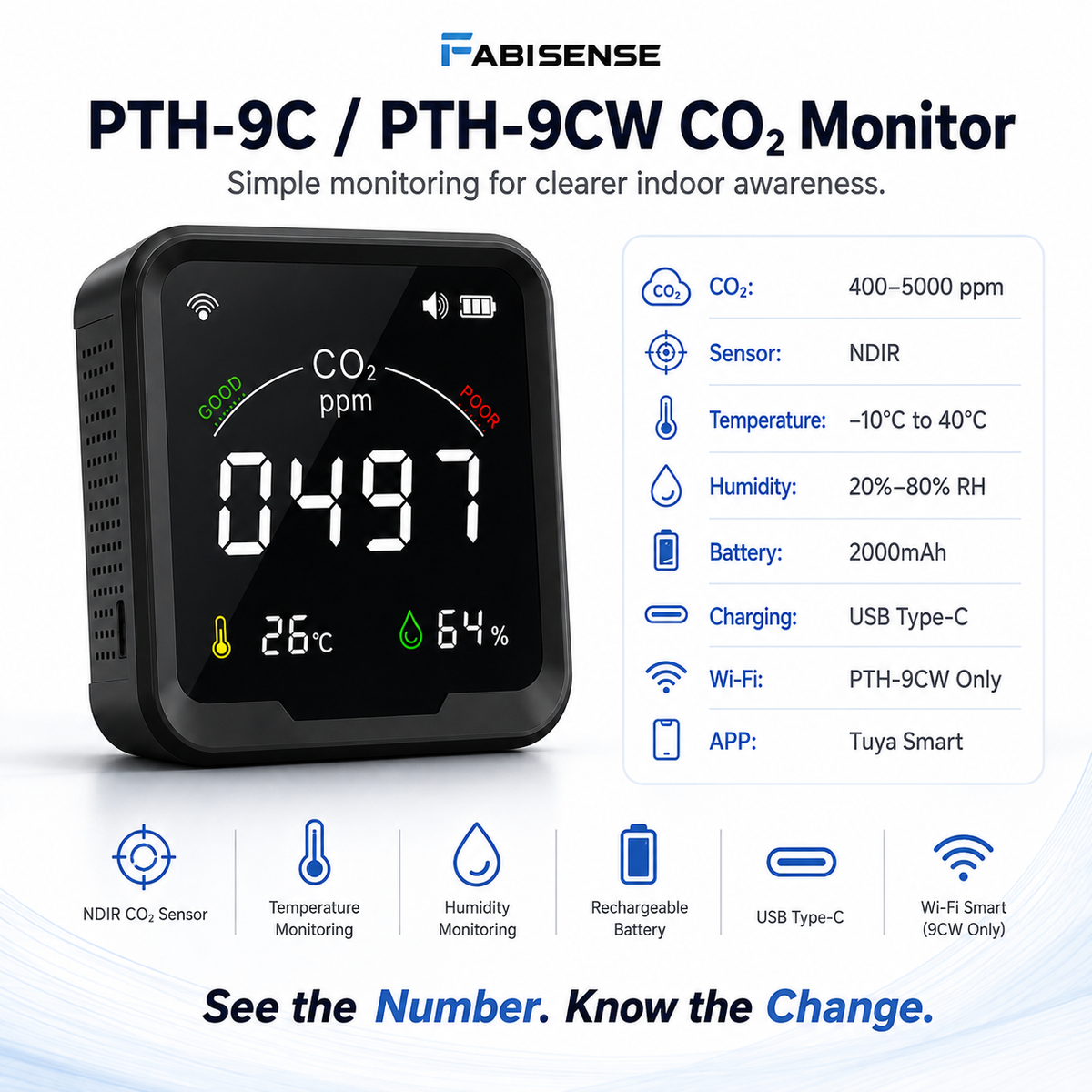

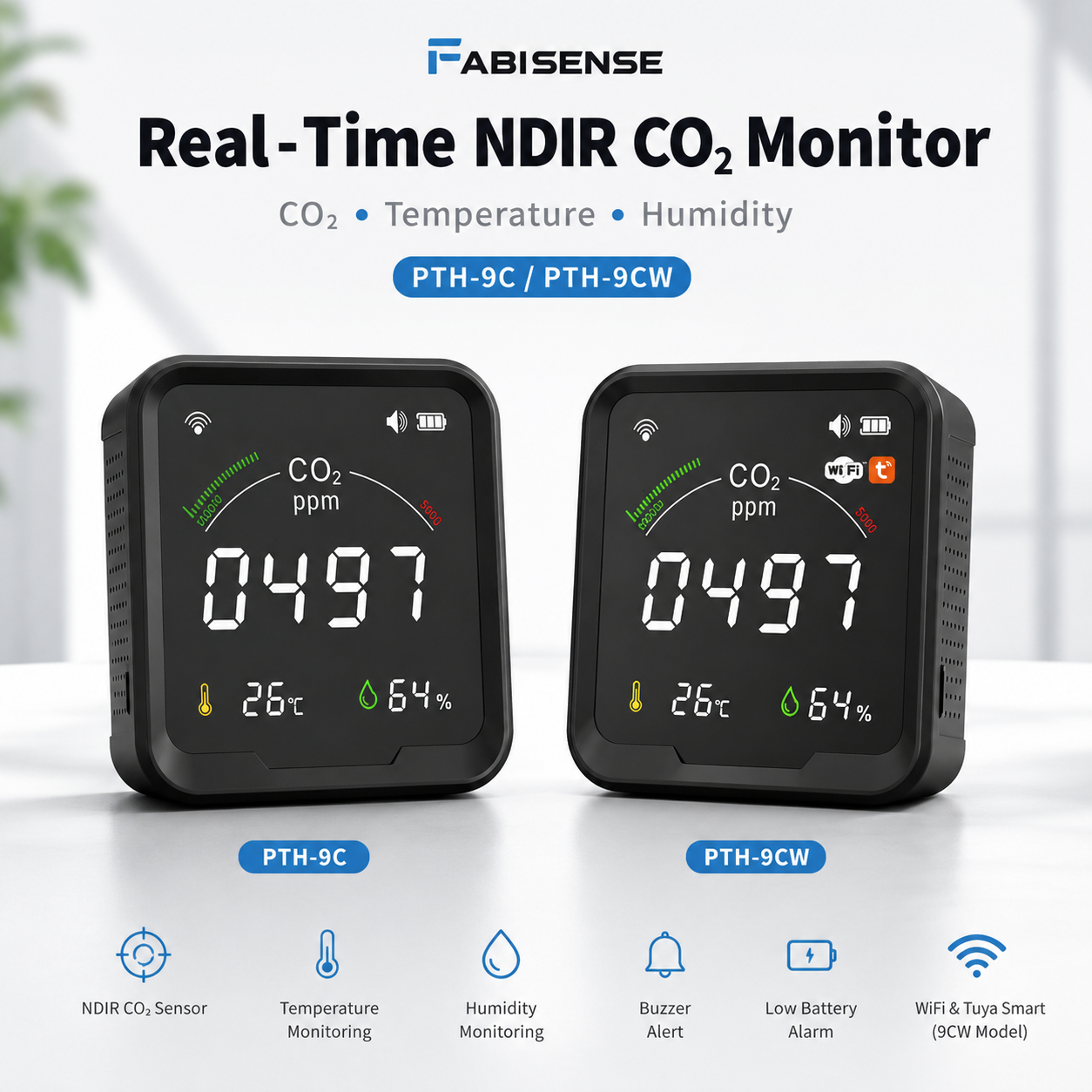

FABISENSE PTH-9C / PTH-9CW 二氧化碳监测仪
一眼洞悉室内二氧化碳水平
FABISENSE PTH-9C / PTH-9CW 二氧化碳监测仪专为简便、持续的室内二氧化碳监测而设计。
配备 NDIR 二氧化碳传感器,可追踪 400–5000 ppm 范围内的二氧化碳水平,并能在清晰的屏幕上同时显示温度和湿度。
大字号数值显示屏与可视化空气质量状态指示灯,让室内环境的变化一目了然。
选择 PTH-9C 可进行直接的独立监测,选择 PTH-9CW 则可获得额外的 2.4GHz Wi-Fi 连接功能及涂鸦智能(Tuya Smart)App 支持。

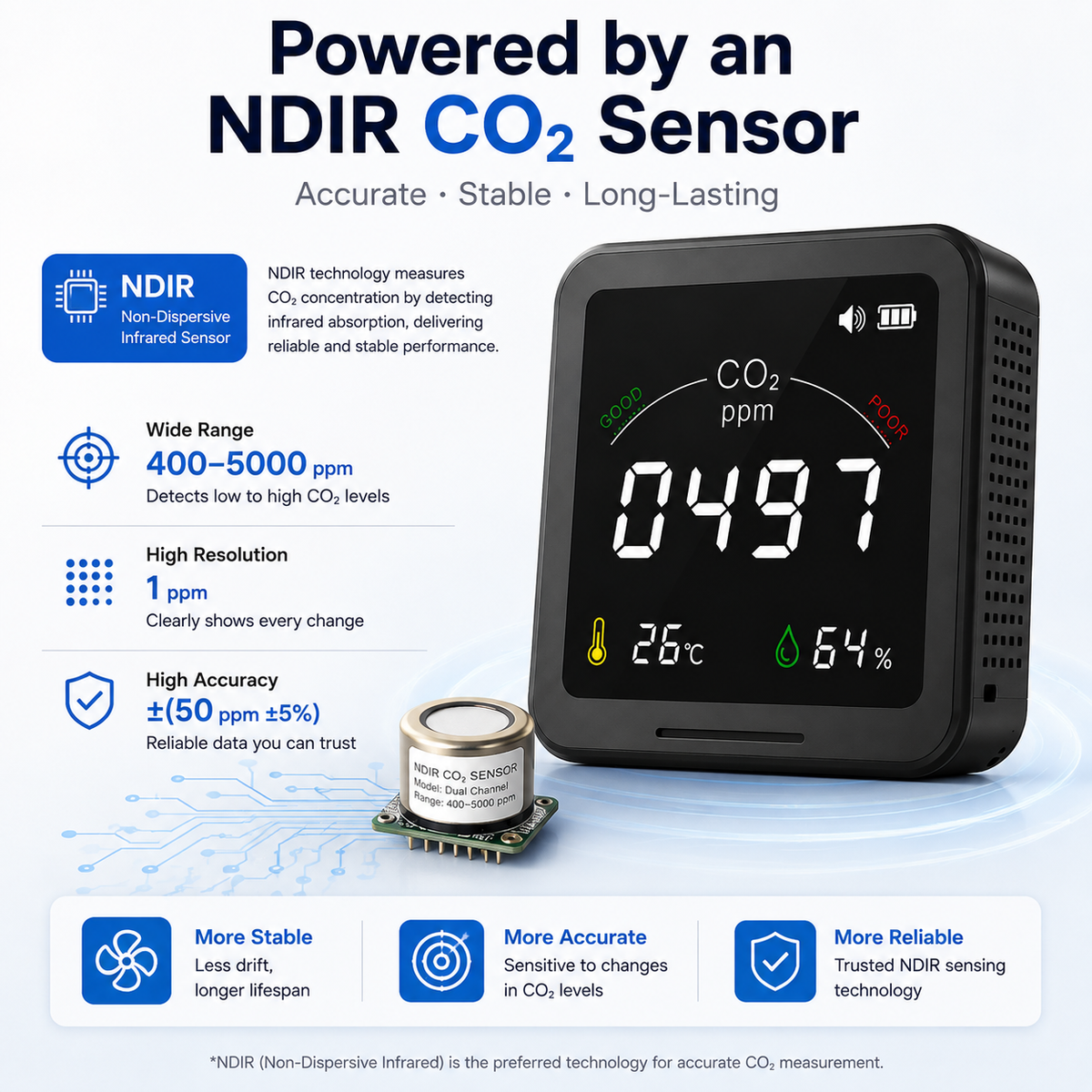

实时 NDIR 二氧化碳监测
在封闭或有人居住的空间内,二氧化碳水平会迅速上升。
内置的 NDIR 传感器可连续测量二氧化碳浓度,帮助您掌握室内空气条件的变化。
二氧化碳量程: 400–5000 ppm
分辨率: 1 ppm
准确度: ±(50 ppm ±5%)
实时监测让您更易于识别何时需要通风换气。

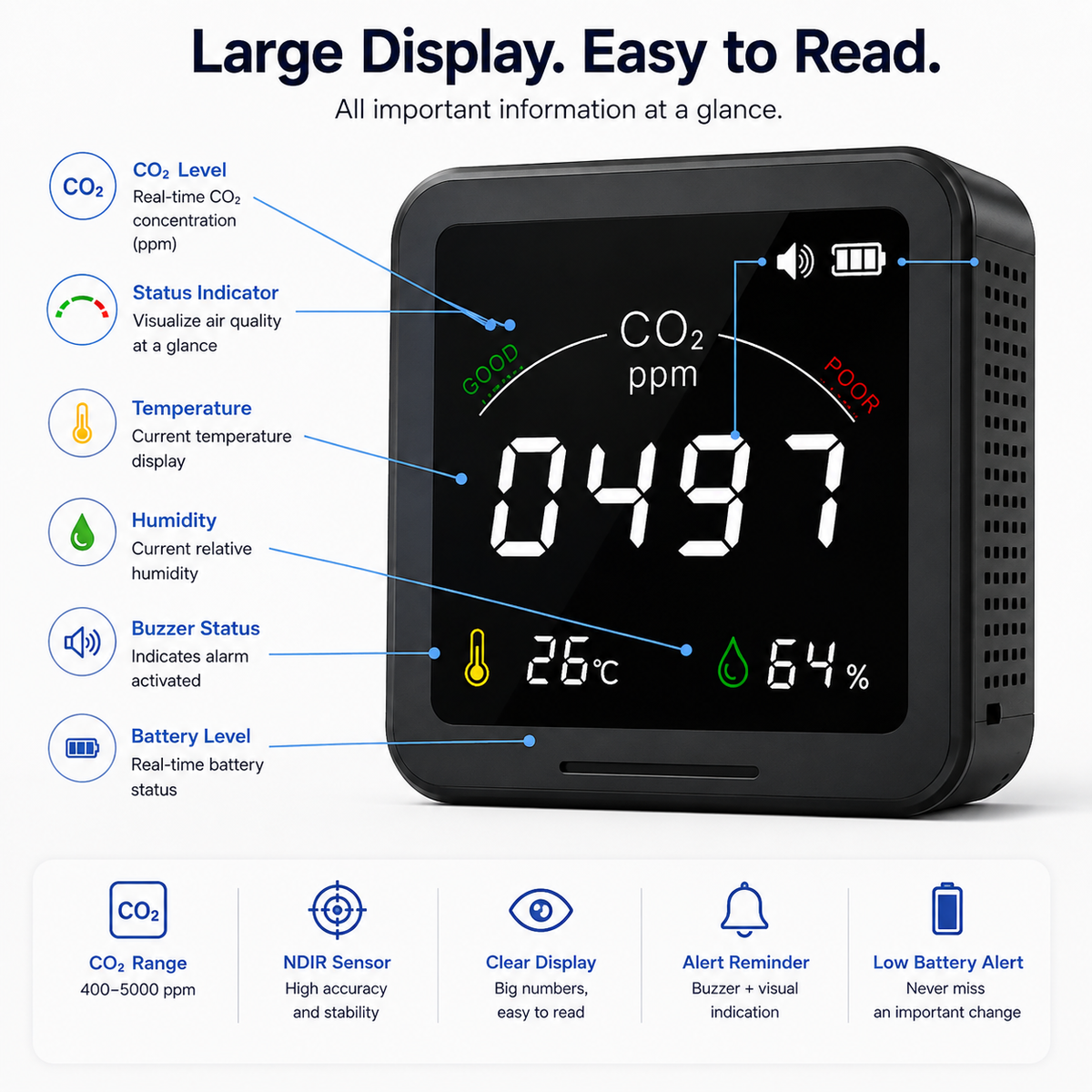

大字体,易读显示屏
重要信息清晰地呈现在同一屏幕上。
查看:
二氧化碳 • 温度 • 湿度 • 空气质量状态 • 电池电量
无需操作复杂菜单,即可在房间各处快速读取大字号的二氧化碳数值。

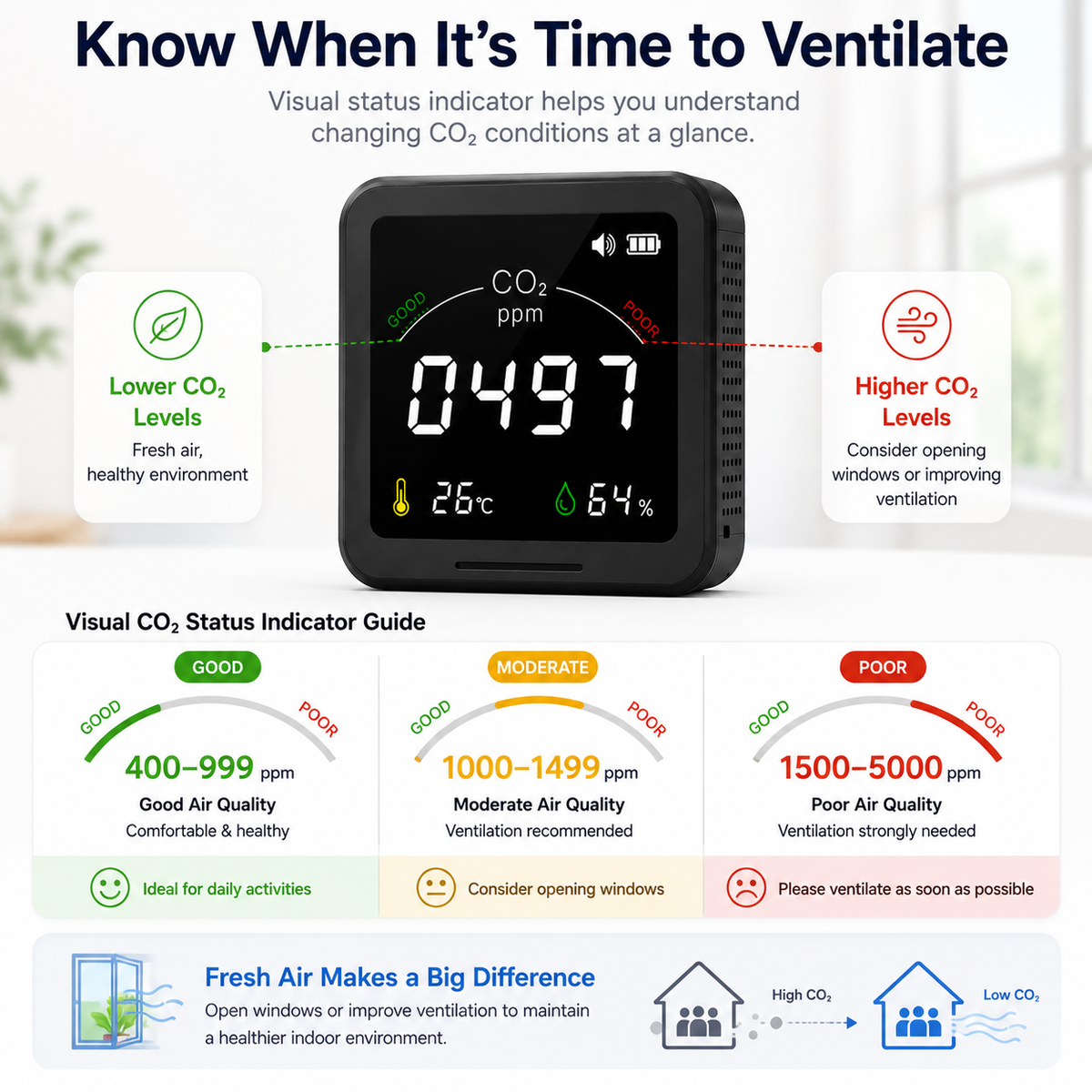

可视化空气质量指示灯
单一数值并不总是易于解读。
PTH-9C 系列采用可视化状态指示灯,帮助您快速识别室内二氧化碳状况的变化。
快速一瞥,即可更清晰地了解当前房间环境以及是否需要通风。

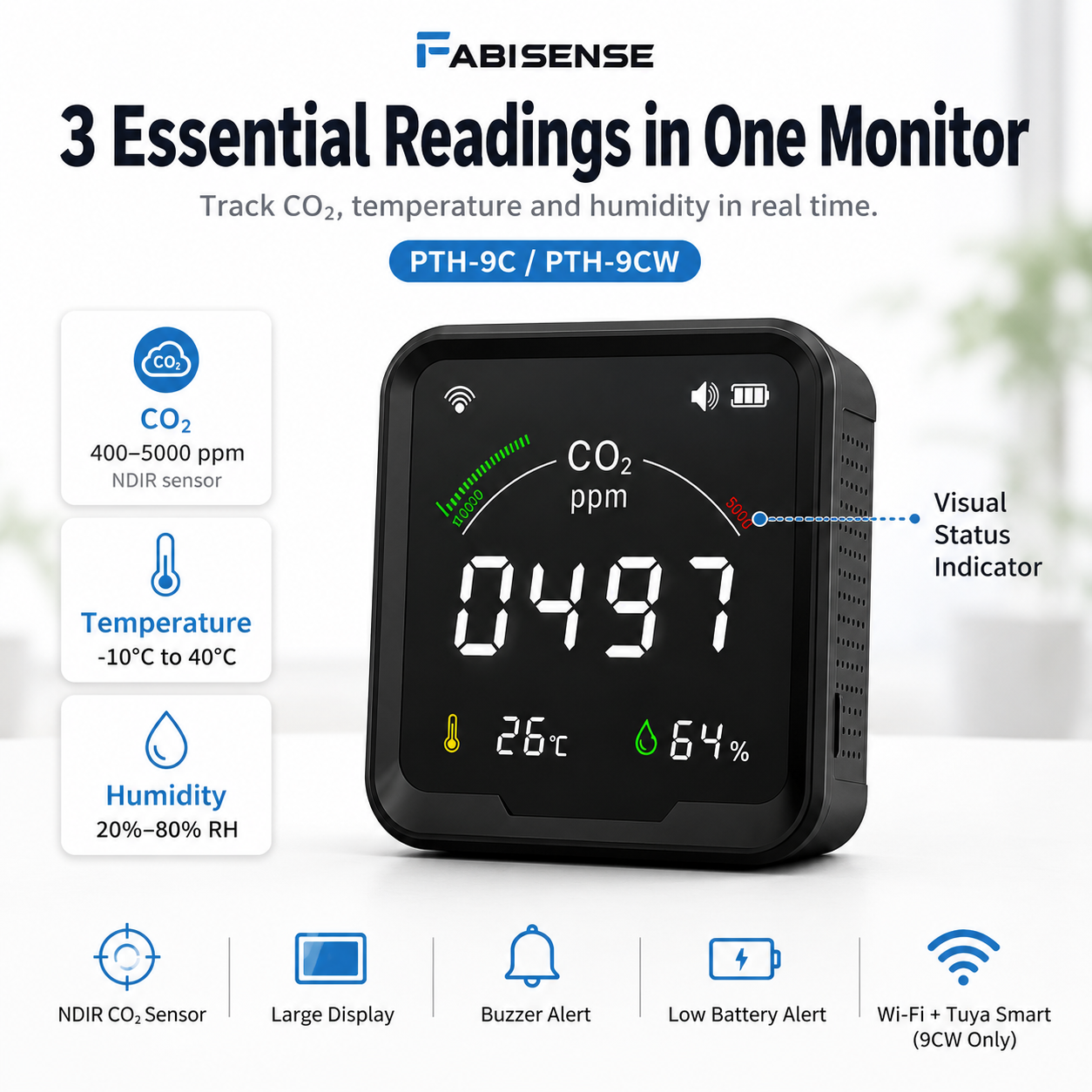

温度与湿度监测
除了二氧化碳,该监测仪还能测量室内温度和相对湿度。
温度范围: -10°C 至 40°C
温度准确度: ±1°C
湿度范围: 20%–80% RH
湿度准确度: ±5% RH
通过一台设备,为您提供更全面的室内舒适度概览。

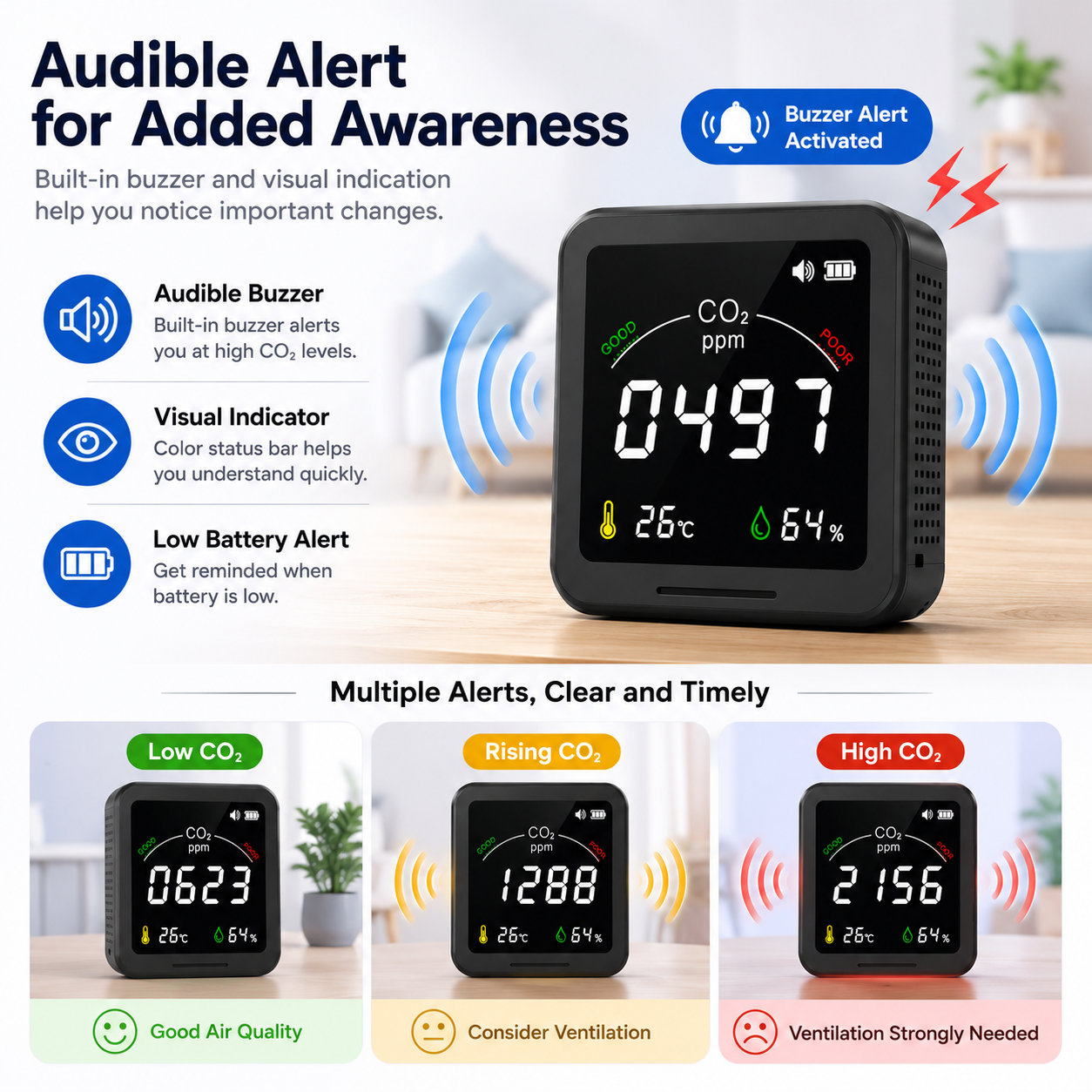

内置声音警报
内置蜂鸣器在监测数值达到预设警告条件时提供额外提醒。
配合大数字显示和可视化指示灯,声音警报让您更容易注意到重要的环境变化。

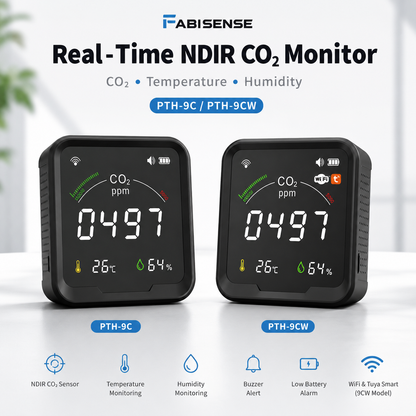

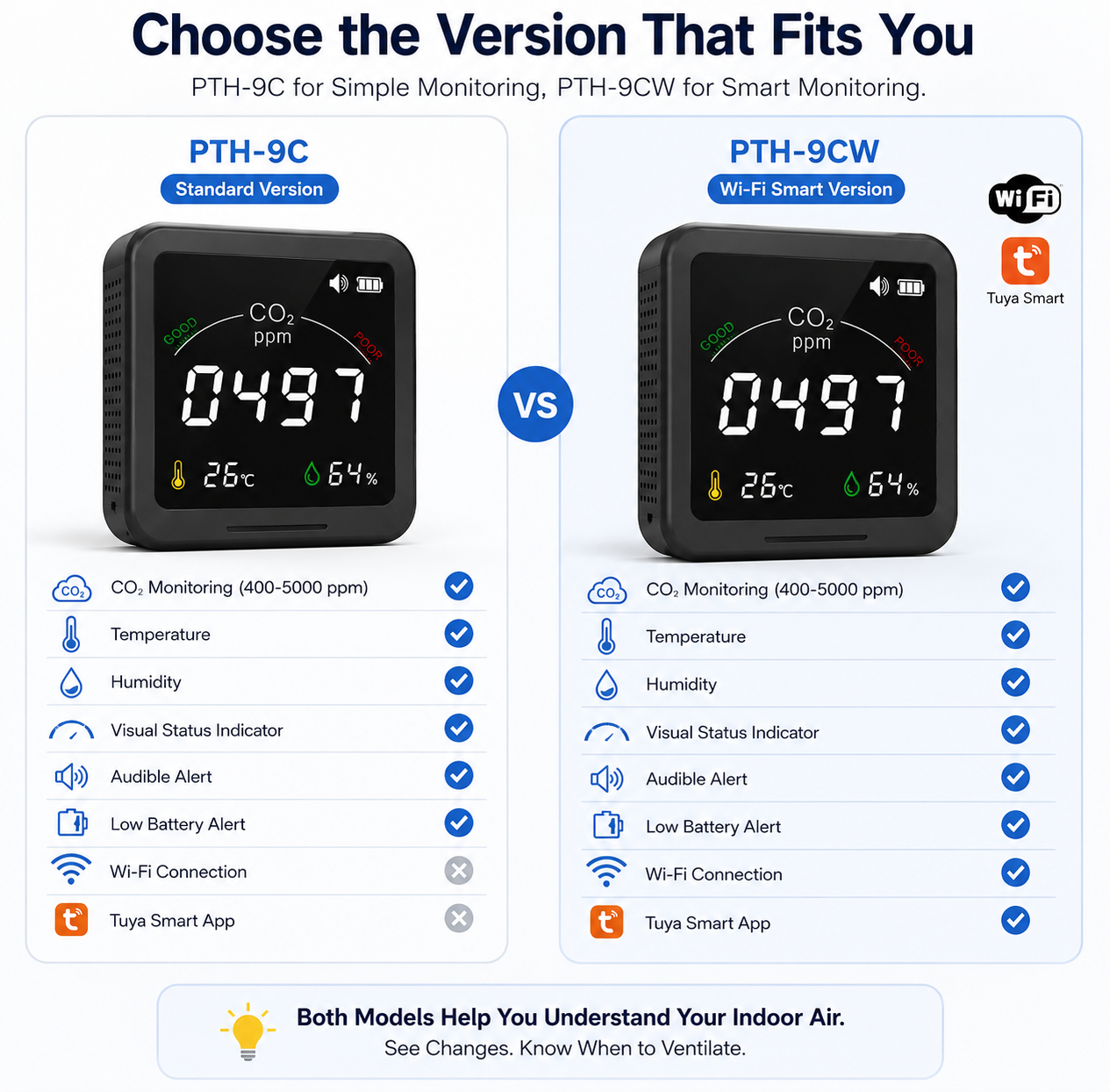

PTH-9C 与 PTH-9CW 对比
| 功能 | PTH-9C | PTH-9CW |
|---|---|---|
| NDIR 二氧化碳传感器 | ✓ | ✓ |
| 二氧化碳监测 | ✓ | ✓ |
| 温度 | ✓ | ✓ |
| 湿度 | ✓ | ✓ |
| 可视化状态指示灯 | ✓ | ✓ |
| 蜂鸣器警报 | ✓ | ✓ |
| 低电量警报 | ✓ | ✓ |
| 2.4GHz Wi-Fi | — | ✓ |
| 涂鸦智能(Tuya Smart)App | — | ✓ |

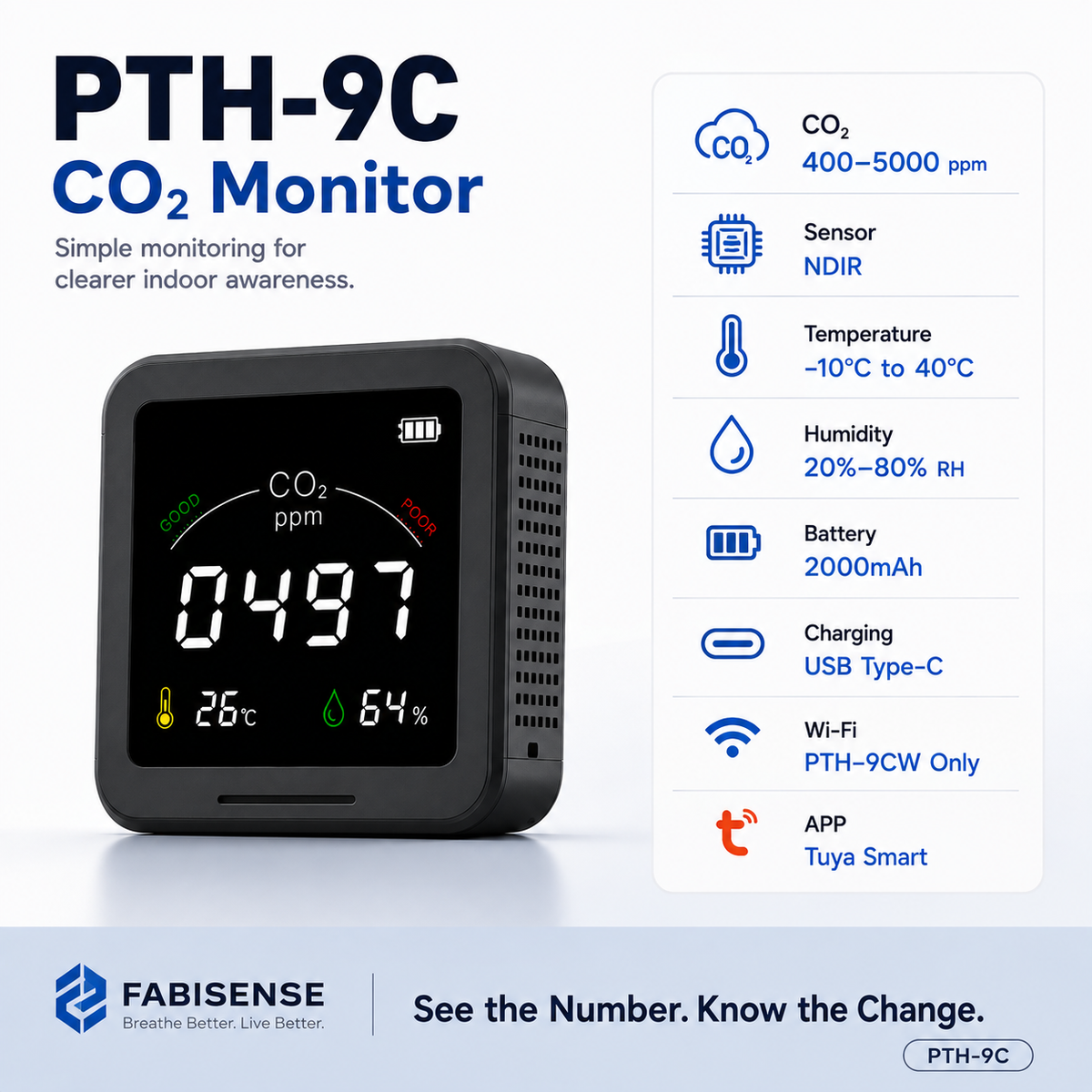

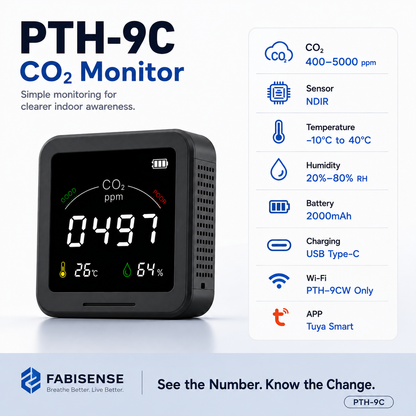

PTH-9C
简易独立监测
对于主要想直接在设备上查看二氧化碳、温度和湿度的用户而言,是一个实用的选择。
PTH-9CW
Wi-Fi 智能监测
包含 PTH-9C 的所有监测功能,并额外增加:
2.4GHz Wi-Fi
涂鸦智能(Tuya Smart)App
非常适合倾向于通过智能手机进行互联监测的用户。

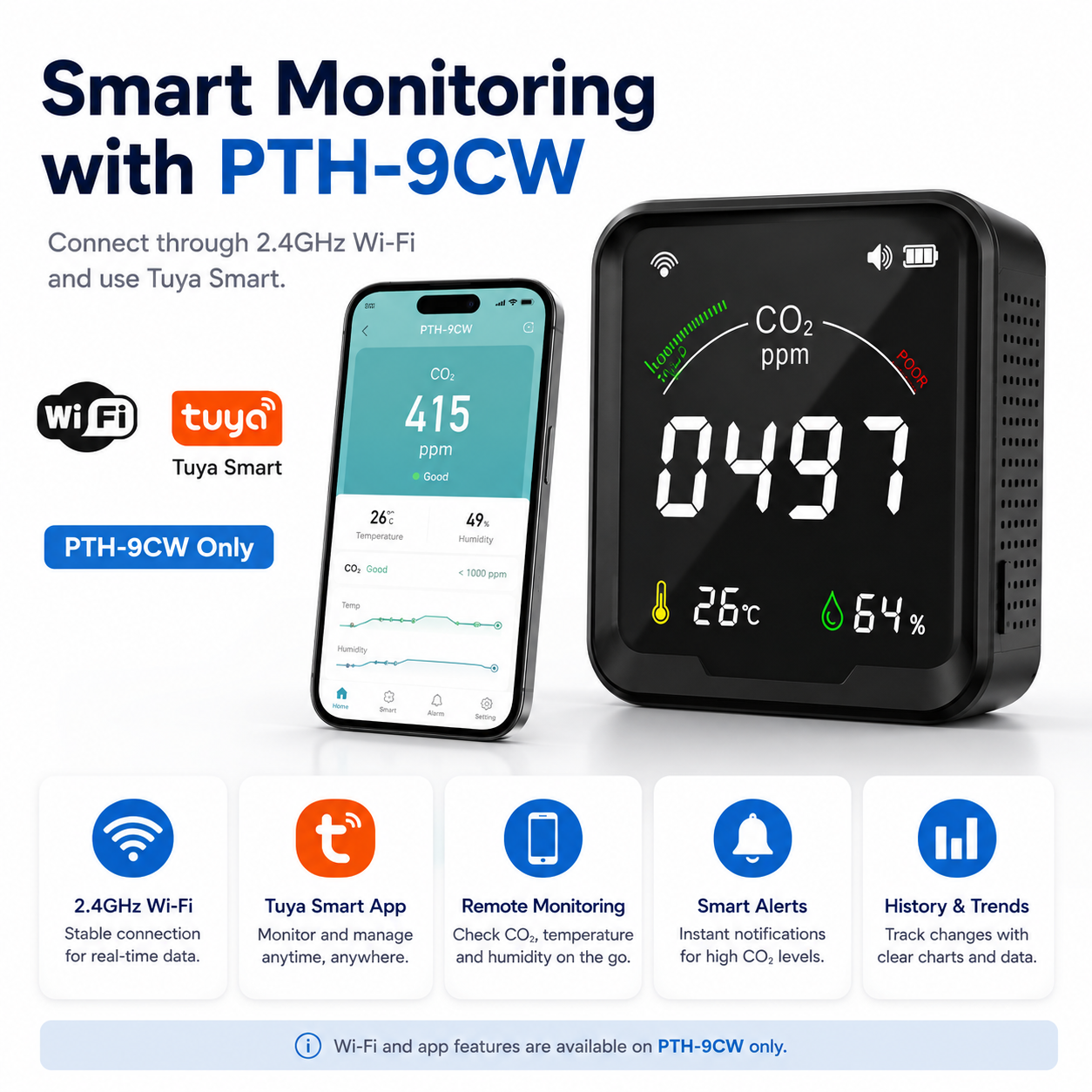

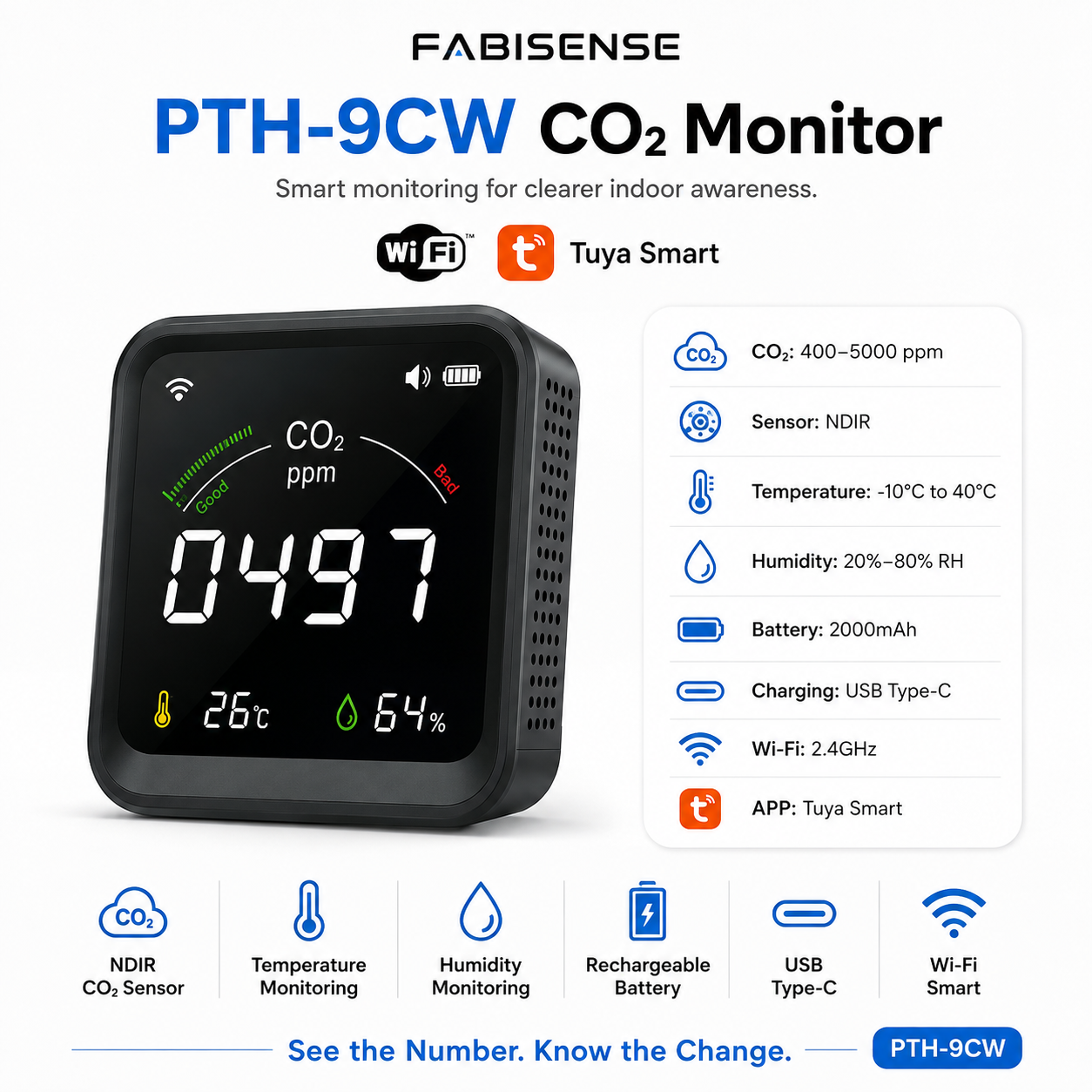

PTH-9CW 智能监测
PTH-9CW 可连接至 2.4GHz Wi-Fi 网络,并配合 涂鸦智能(Tuya Smart)实现相应的 App 功能。
这为您从手机查看室内环境信息提供了更便捷的方式。
Wi-Fi 及 App 功能仅在 PTH-9CW 上提供。

可充电且易于放置
内置 2000mAh 可充电锂聚合物电池,让您在摆放监测仪时拥有更多灵活性。
充电方式: USB Type-C
输入: 5V ⎓ 1A
可放置在:
书桌 • 床头柜 • 置物架 • 工作台 • 温室工作台
紧凑的设计使其易于在不同室内空间之间移动。
专为日常室内空间设计
卧室
留意封闭睡眠空间内的二氧化碳状况。
家庭办公室
监测长时间工作期间的二氧化碳水平变化。
教室
适用于有人居住的学习和研究环境。
客厅
检查日常室内二氧化碳、温度和湿度状况。
温室
在同一台设备上监测二氧化碳以及温度和湿度。
房车与封闭空间
适用于小型封闭环境的紧凑型监测设备。
产品规格
| 规格 | PTH-9C / PTH-9CW |
|---|---|
| 二氧化碳传感器 | NDIR |
| 二氧化碳量程 | 400–5000 ppm |
| 二氧化碳分辨率 | 1 ppm |
| 二氧化碳准确度 | ±(50 ppm ±5%) |
| 温度范围 | -10°C–40°C |
| 温度准确度 | ±1°C |
| 湿度范围 | 20%–80% RH |
| 湿度准确度 | ±5% RH |
| 警报 | 声音蜂鸣器 |
| 低电量警报 | 有 |
| 电池 | 2000mAh 锂聚合物 |
| 充电接口 | USB Type-C |
| 充电输入 | 5V ⎓ 1A |
| Wi-Fi | 仅 PTH-9CW |
| Wi-Fi 频率 | 2.4GHz |
| App | 涂鸦智能(Tuya Smart) |
| 产品尺寸 | 98 × 90 × 40 毫米 |
简易监测,清晰感知室内环境。
无论您选择独立版 PTH-9C 还是智能版 PTH-9CW,两款机型均旨在让室内二氧化碳监测变得简单且易于理解。
看清数值,理解变化,知晓何时通风。
