FABISENSE HT118A True RMS Digital Multimeter 6000 Counts Auto-Ranging Tester with LCD Dual Display, Bargraph, Temperature, NCV & Live Wire Test

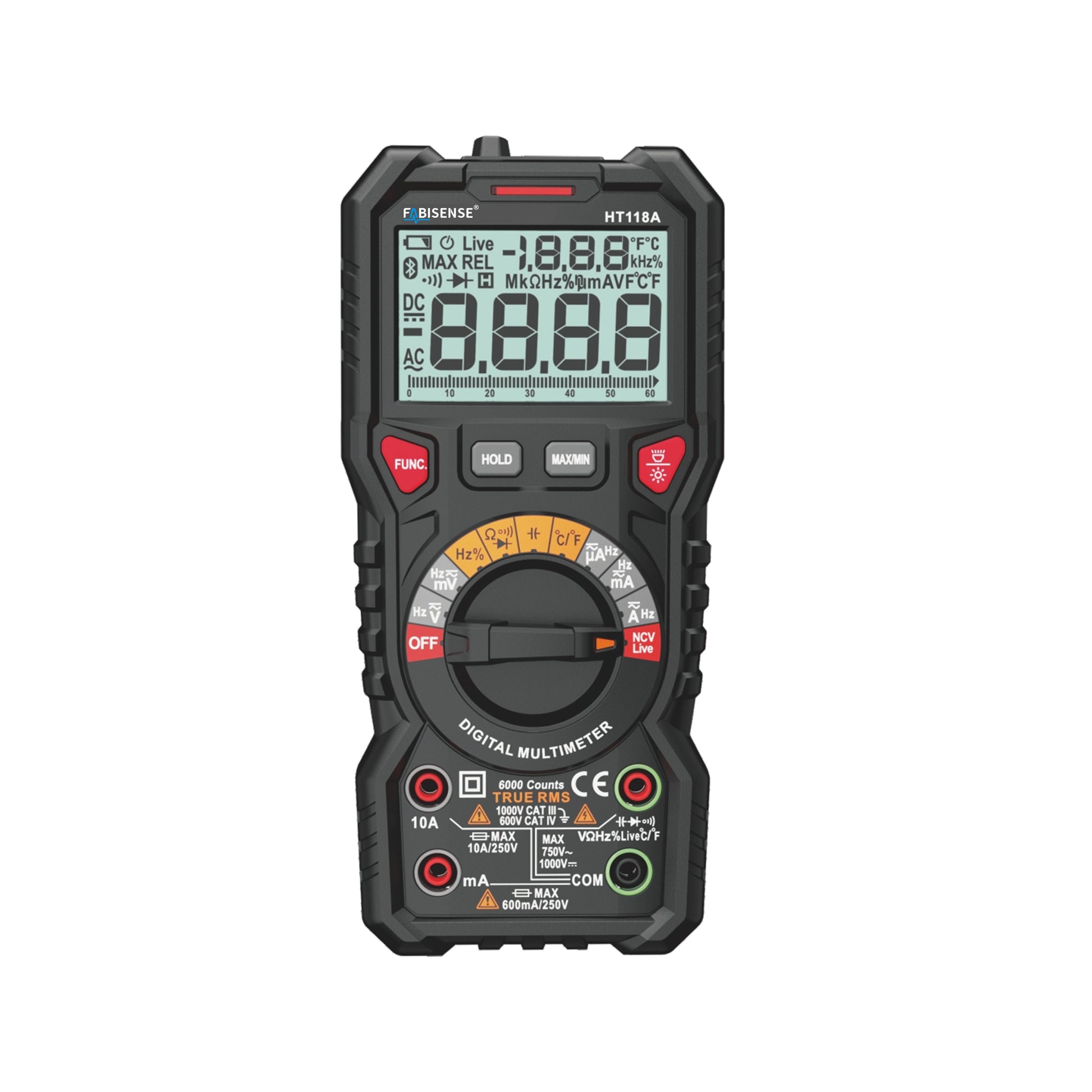

FABISENSE HT118A Professional Auto-Ranging Digital Multimeter

The FABISENSE HT118A is a heavy-duty, highly accurate 6000-count smart multimeter engineered for both professional electricians and advanced DIYers. With its advanced Auto-Ranging capability and dual LCD display featuring a real-time analog bargraph, it simplifies complex electrical troubleshooting with maximum precision.

Key Features:

• Smart Auto-Ranging & True RMS: Automatically selects the correct testing range for seamless workflows. True RMS delivers exact AC voltage and current readings regardless of waveform complexity.

• Dual LCD Screen & Bargraph: Innovative dual-display showing auxiliary data simultaneously, paired with a fast-acting analog bargraph for quick visual tracking of fluctuations.

• Sound & Light Smart Alarms: Both Non-Contact Voltage (NCV) detection and Live Wire tests trigger bright visual LED and audible buzzer alarms for hands-free safety routing.

• Comprehensive Climate & Electronics Testing: Built-in temperature measurement probe supporting wide ranges (-40°C to 1000°C), alongside capacitance, frequency, duty cycle, diode, and continuity checks.

• Advanced User Guidance: Features input jack LED indicators that light up to show you exactly where to plug in your test leads, preventing accidental damage. Equipped with a two-color backlight and flashlight.

• Industrial Safety Standards: Built to meet rugged EN61010-1 compliance with top-tier CAT III 1000V and CAT IV 600V safety overload ratings.

Specifications:

• Display / Range: 6000 Counts Dual LCD Display with Bargraph / Auto Range

• DC Voltage / AC Voltage: Up to 1000V DC / Up to 750V AC

• DC Current / AC Current: 600µA to 10A

• Resistance / Capacitance: 600Ω to 60MΩ / 10nF to 100mF

• Frequency / Duty Cycle: 10Hz to 10MHz / 1% to 99%

• Temperature Tracking: -40°C~1000°C (-40°F~1832°F)

• Power Supply / Dimensions: 2 x 1.5V AA Batteries / 188x88x58mm
