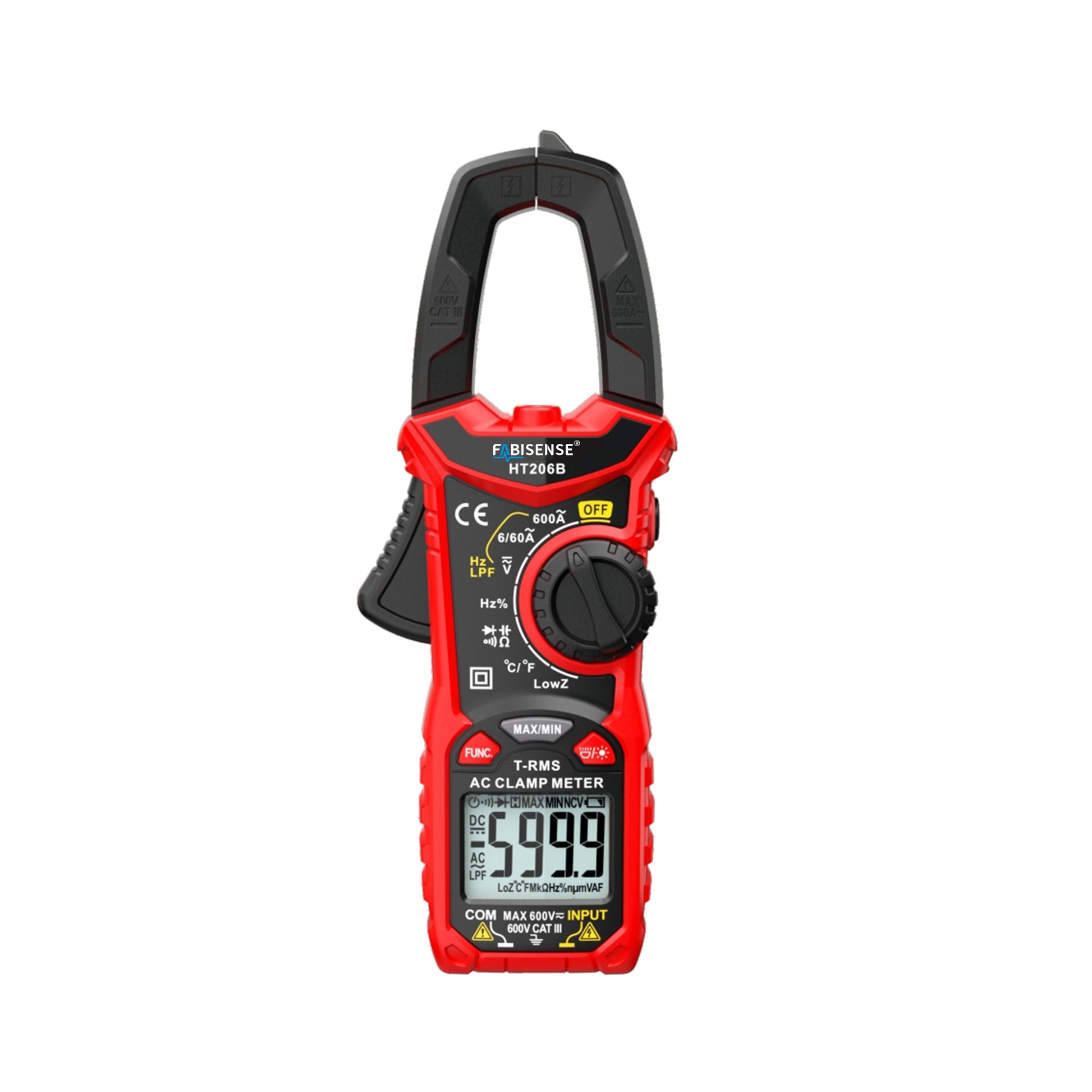

FABISENSE HT206B True RMS Digital Clamp Meter 6000 Counts Auto-Ranging AC Current Tester with NCV, Low-Z, LPF & Temperature

FABISENSE HT206B Advanced AC Clamp Meter with LPF & Low-Z

Take your electrical diagnostics further with the FABISENSE HT206B. Boasting an upgraded 6000-count resolution, this advanced AC clamp meter introduces high-end industrial filtering features like LPF (Low Pass Filter) and Low-Z (Low Impedance), making it ideal for HVAC technicians, industrial maintenance, and complex electrical environments.

Key Features:

• 6000 Counts & True RMS: Delivers higher digital resolution and top-tier accuracy for precise troubleshooting on commercial electrical systems.

• LPF (Low Pass Filter): Accurately measures voltage and current signals on variable frequency drives (VFDs) and motors by filtering out high-frequency noise.

• Low-Z Ghost Voltage Elimination: Features a low-impedance mode that eliminates false readings caused by "ghost voltages" in parallel lines, ensuring absolute accuracy.

• Non-Contact Voltage (NCV) Sensor: Safely scans for the presence of AC voltage without any wire contact, providing instant visual backlight shifts and audible alerts.

• HVAC Temperature Tracking: Includes a K-type temperature probe to record environment or contact temperatures ranging from -40°C to 1000°C (-40°F to 1832°F).

Specifications:

• Display Counts: 6000 Counts (True RMS)

• AC Current Range: 6A / 60A / 600A

• Special Filters: LPF (Low Pass Filter) & Low-Z Mode

• Temperature Spectrum: -40°C~1000°C (-40°F~1832°F)

• Frequency / Duty Cycle: 10Hz to 10MHz / 1% to 99%

• DC Voltage / AC Voltage: Up to 600V

• Weight / Dimensions: Approx. 188g / 193x73x34mm
